Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BlueRay |
| Certification: | CE ISO |
| Model Number: | ZDBZ-600 |
| Minimum Order Quantity: | 1.0 Set/Sets |
| Price: | $30,000.00 - $60,000.00 / Set |
| Packaging Details: | Each set of automatic granule packing machine will packed in 20" container |
| Supply Ability: | 100 Set/Sets per Month automatic granule packing machine |
| Machinery Capacity: | 500BPH | Application: | Nuts Flow Pellet Granular |
|---|---|---|---|
| Packaging Type: | Open Mouth Bags Such As Woven Bags, Plastic Bags, Kraft Bags Etc | Packaging Material: | Wood, Exported Wooden Box |
| Driven Type: | Pneumatic | Voltage: | 220V/380V/50Hz |
| Dimension(L*W*H): | 4000*2800*2400mm | Weight: | Around 1-1.5tons |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Maintenance And Repair Service | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction Works , Energy & Mining |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Filling Material: | Powder, Granular Materials Such As Feed, Grains, Fertilize |
| Core Components: | Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine | Product Name: | Fully Automatic Nuts Flow Pellet Granular Filling Machine |
| Installed Sealing Ring: | To Prevent Leakage Of Material | Function: | Weighing Packing 20-50kg Materials Into Bags |
| Packing Speed: | 200-300, 300-400, 500-600 Bags/hour For Choose | ||
| High Light: | 500bags/H granular filling machine,500BPH granular filling machine,ZDBZ-600 automatic bagging equipment |
||

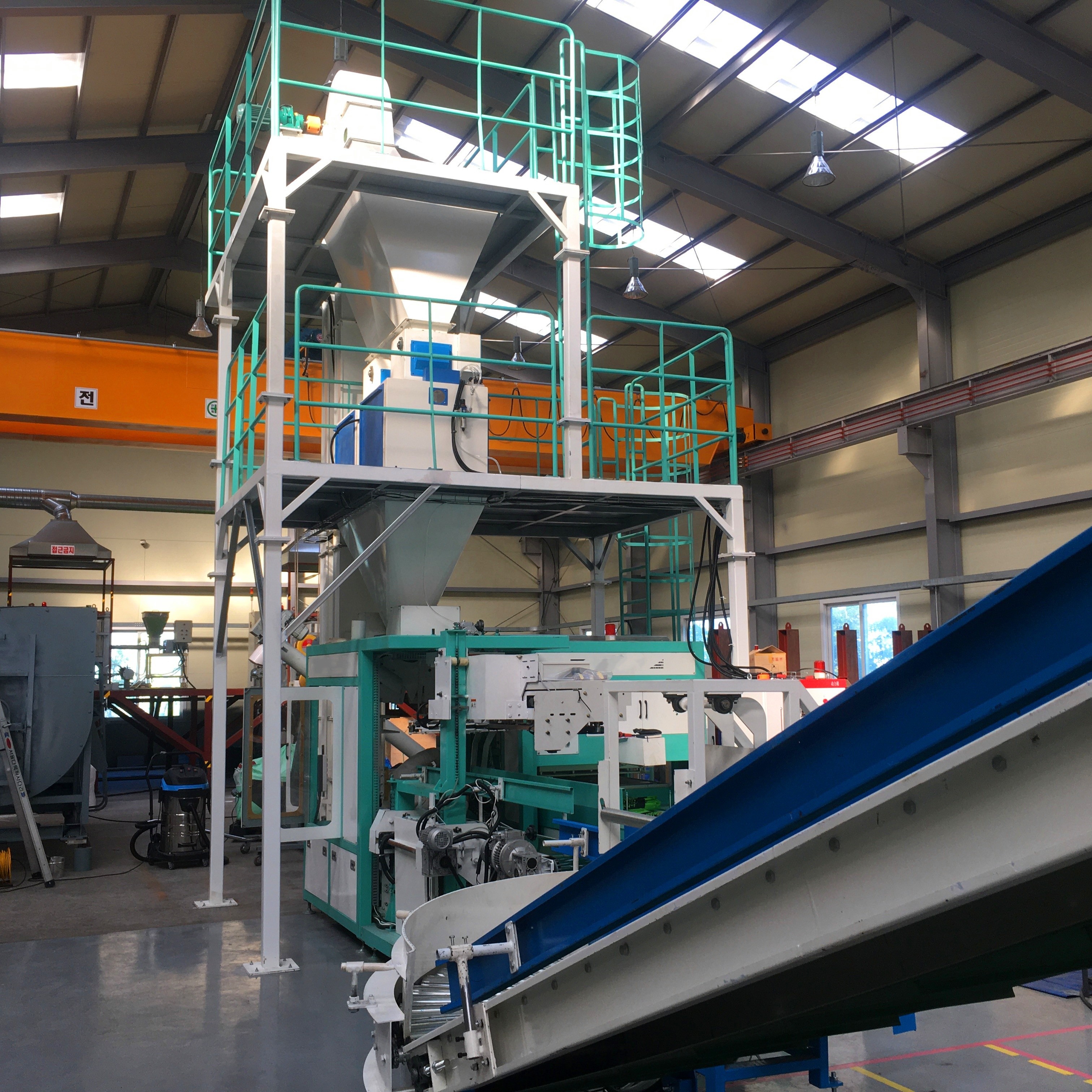

FULL AUTOMATIC BAGGING STITCHING MACHINE, FULL AUTOMATIC PACKAGING LINE
| Item | ZDBZ-600 FULL AUTOMATIC BAGGING SEWING MACHINE | ||
| Application materials | each type small size granule mateials such as animal feed, fertilizer, rice, grains, PE,PP etc | ||
| Weighing range | 20-50kg/bag or customized | ||
| Scale interval | 10g | ||
| Feeding type | gravity feeder/belt feeder | ||
| Weighing hopper | dual-weighing hopper | ||
| Precision | ±50-100g based on your materials characteristics | ||
| Capacity | around 600bags/hour | ||
| System | PLC system and 10" full touch scren HMI | ||
| Aplicable bag type | airtight bags, woven bags with lining, paper bags, kraft bags etc | ||
| recommend bag size: width 50-65cm, length 80-110cm or customized | |||
| Air source | 0.5-0.8Mpa, 750nl/min | ||
| Dimensiion(L*W*Hmm) | 4000*2800*2400mm, details size see the drawing | ||
| Power | 4.28kw | ||
| Voltage | single/three phase AC220V/AC380V/50HZ | ||
| Working environment | (-10℃~40℃) | ||
| Relative humidity | ≤90%RH non condensation | ||
| Machine materials | Q235 carbon steel with anti-rust painting or product contact parts 304 stainless steel, non-contact parts carbon steel. | ||
