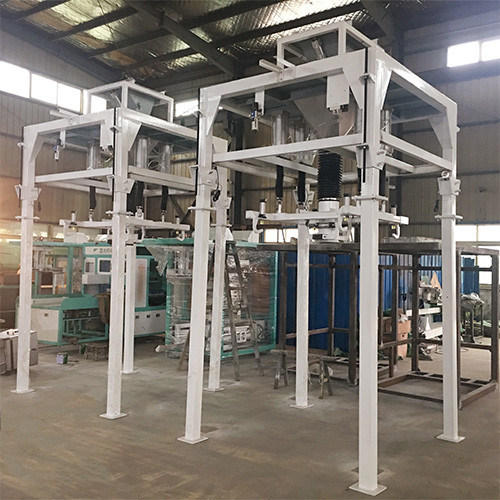

180bags/Hour 1500KG Carob Powder Packing Machine
Product Details
Carob Powder Packing Machine
,1500KG Powder Packing Machine
,180bags/Hour Powder Packing Machine
1, Product Name: new type carob powder packing machine
2, Item: DCS-50WF
|
Application materials
|
powder
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
5-50kg/bag or customized needs
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
120-180 bags/hour
|
||
|
Dimention(L*W*Hmm)
|
3000*1200*2600mm, the size can be customized according to your site
|
||
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
3KW
|
||
|
Working Temperature
|
-10~40 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
Application Materials(products)
Screw feeding type packing machine suit for pack powder of any industry,such as flour, starches, lime powder, cement, fertilizer,silica sand powder, nitrate of potash, ammonium sulfate etc
Application Bags(open mouth bags)
This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
|
Control Box+Full touch screen panel |
Three pieces of Load Cell(weighing sensor)+Famous brand load cell, more stable |
|
|
Dual Screw Feeding Mechanism+Dual screw design(coarse screw+fine screw) |
Automtic Bag Clamp/Loose Mechanism+Photoelectric sensor switch |
|
|
Dust Air Outlet+All of our packing machine will install air outlet |
Automatic Sewing Machine+Automatic bag top folding device(opitional) |
|
Package in wooden case
All equipments will package in the
wooden case and fixed by the steel
then in the cantainer
Transport by truck
We will transport the machine to
Shanghai port(or any port of China you need)by the truck
Ship by the cargo vessel
All machines will in container then
ship to the sea port of your country by the boat
|
Item
|
DCS-50WF
|
DCS-50F
|
DCS-50SF
|
|
Application materials
|
Power of any industry
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
5-50kg/bag or customized
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
120-180 bags/hour
|
240-360 bags/hour
|
500-600 bags/hour
|
|
Dimention(L*W*Hmm)
|
3000*1200*2600
|
3000*1200*3200
|
4000*1200*3700
|
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
3KW
|
3KW
|
6KW
|
|
Working Temperature
|
-10~40 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
Changsha Blue Ray M & E Co., Ltd
-15 years professional manufacturer of packing machines,sewing/heat sealing machine,automatic palletizer
machine,elevator/conveyor etc
-More than 10 person engineers team,OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service
Flowing chart:
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
