Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | Blueray |
| Certification: | CE ISO |
| Model Number: | DCS-50L |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Packaging Details: | 1, Each packing machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 50 Set/Sets per Month automatic pp granular packing machine |
| Application: | Granular Or Powder Material Of Good Flow, Commodity, Food | Packaging Type: | PP Woven Bag, Kraft Bag, Plastic Bag Or Others, Bags |
|---|---|---|---|
| Dimension(L*W*H): | 860*1100*3143mm | Name: | Pp Granular 50kg Big Bag Packing Machines In Mega March Sourcing |
| Material: | Carbon Steel Or Stainless Steel | Weighing System: | 3 Pcs Load Cells For Each Bucket |
| Accuracy: | ± 0.2% | Packing Range: | 5-50kg |
| Packing Speed: | 360-420 Bags/hour | OEM: | Yes |
| Color: | White And Blue | Port: | Shanghai Or Any Port In China |
| Packaging Material: | Wood, Pp Granular Packing Machine In Wooden Case | Automatic Grade: | Semi-automatic |
| Driven Type: | Pneumatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Voltage: | AC 220V/380V 50HZ | Power: | 500W |
| Weight: | Approx. 1 Ton | ||
| High Light: | 25kg pp granule packing machine,50kg packing machine,50kg bag Semi Automatic Bagging Machine |
||
|
Product Name |
High speed automatic pp granular 50kg big bag packing machines in Mega March Sourcing |
||
|
Item |
DCS-50WL |
DCS-50L |
DCS-50SK |
|
Application Materials |
Granular materials such as plastic particles,feed, fertilizer( urea etc), grain,sugar, bean, rice |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
10-50kg/bag or customized needs |
||
|
Precision |
+/-(0.1-0.2)% FS |
||
|
Packing Capacity |
240-360bags/hour or more fast |
360-480 bags/hour or more fast |
500-600 bags/hour or more fast |
|
Dimension(L*W*Hmm) |
See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-4KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||
|
Description |
Remarks |
|
Packing scale framework |
Floor structure, high quality carbon steel |
|
Feeding mechanism |
Gravity feeding type, three grade feeding speed with fast-medium-slow |
|
Weighing sensor |
Installation 3pcs(DCS-50WL,DCS-50L)/6pcs(DCS-50SK) load cell, famous brand |
|
Control system |
PLC system, full automatic, data record & print function |
|
Control box |
Color touch screen, English/Chinese interface |
|
Cylinder |
AirTAC brand, big force, high quality, more stable, long service life |
|
Solenoid valve |
AirTAC brand, with indicator |
|
Electric component |
Schneider brand, short circuit protection function |
|
Pneumatic component |
AirTAC brand, stable and reliable |
|
Motor |
Frequency conversion motor with smooth working |
|
Automatic sewing machine |
Photoelectric induction control, automatic thread knife cut, date record & print |
|
Belt type bag conveyor |
Speed governing design |
DCS-50WL 240-360bag/hour GRAVITY FEEDING packing/packaging/bagging/filling machine picture

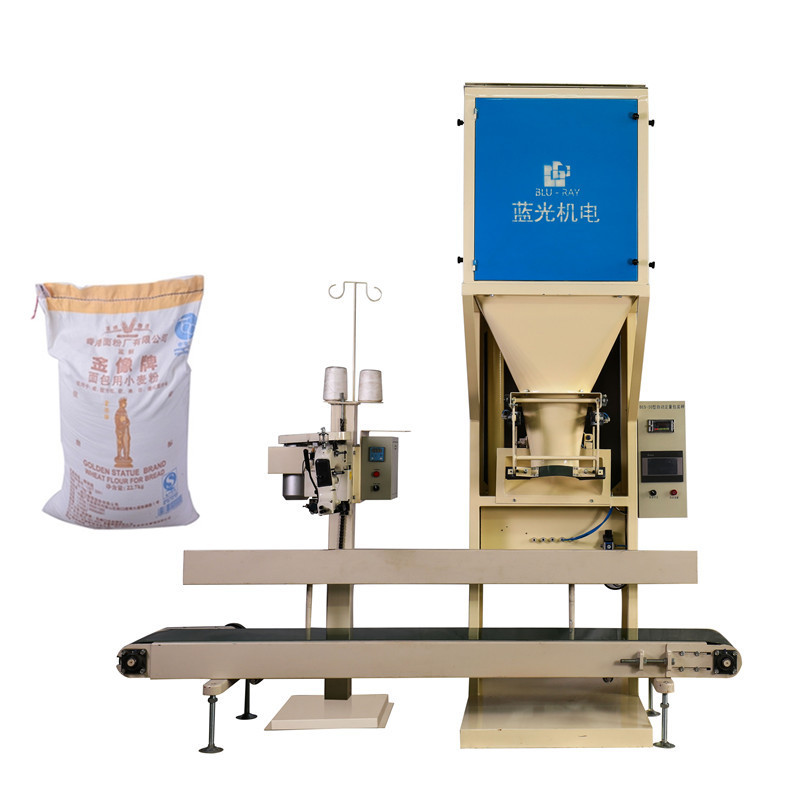

DCS-50L 360-480bags/hour GRAVITY FEEDING packing/packaging/bagging/filling machine picture
DCS-50SK 500-600bag/hour GRAVITY FEEDING packing/packaging/bagging/filling machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-
testing-packaging and transport-after service
