Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BLU-RAY |
| Certification: | CE,ISO,CMC |
| Minimum Order Quantity: | 1.0 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Packaging Details: | 1, Each set of packing machine will be packed in a big wooden box, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month fertilizer bagging machine |
| Warranty: | 1 YEAR | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining |
|---|---|---|---|
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Thailand |
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 YEAR | Core Components: | PLC |
| Application: | Fertilizer, DAP Fertilizer, Granule Fertilizer, Urea Etc | Packaging Type: | Each Type Of Open Mouth Bags Such As Woven Bags, Kraft Bags, Sacks Etc, Bags |
| Driven Type: | Electric And Pneumatic | Dimension(L*W*H): | 3000*1100*2500mm |
| After-sales Service Provided: | Online Support, Engineers Available To Service Machinery Overseas | Key Selling Points: | High-accuracy |
| Product Name: | 50kg Automatic DAP Fertilizer Bagging Machine | Three Load Cell: | High Weighing Accuracy |
| Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow | Control Box: | Full Touch Screen Panel |
| Automatic Bag Clamp: | Sensor Control | PLC System: | Easy Operating |
| Packing Material: | Granular Or Good Flow Powder | Sewing Machine: | Full Automatic |
| OEM Service: | 15 Years R&D Experience | Type: | Other |
| Condition: | New | Packaging Material: | Wood |
| Automatic Grade: | Semi-automatic | Voltage: | 220V/380V/50HZ |
| Power: | 3-6KW | Weight: | 1000KG |
| Port: | Shanghai Or Any Port Of China | ||
| High Light: | DAP Fertilizer Vertical Bagging Machine,Sensor Control Vertical Bagging Machine,1000KG Vertical Bagging Machine |
||
CE certificate 50kg automatic DAP fertilizer bagging machine
|
Product Name |
CE certificate 50kg automatic DAP fertilizer bagging machine |
||
|
Item |
DCS-50WL |
DCS-50L |
DCS-50SK |
|
Application Materials |
Granular materials such as plastic particles,feed, fertilizer( urea etc), grain,sugar, bean, rice |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
10-50kg/bag or customized needs |
||
|
Precision |
+/-(0.1-0.2)% FS |
||
|
Packing Capacity |
240-360bags/hour or more fast |
360-480 bags/hour or more fast |
500-600 bags/hour or more fast |
|
Dimension(L*W*Hmm) |
See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-4KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||
CE certificate 50kg automatic DAP fertilizer bagging machine all accessories use the famous brand such as AirTAC, Delta, CHNT, Schneider etc, it can stable and long time working no any problems.
|
Description |
Remarks |
|
Packing scale framework |
Floor structure, high quality carbon steel |
|
Feeding mechanism |
Gravity feeding type, three grade feeding speed with fast-medium-slow |
|
Weighing sensor |
Installation 3pcs(DCS-50WL,DCS-50L)/6pcs(DCS-50SK) load cell, famous brand |
|
Control system |
PLC system, full automatic, data record & print function |
|
Control box |
Color touch screen, English/Chinese interface |
|
Cylinder |
AirTAC brand, big force, high quality, more stable, long service life |
|
Solenoid valve |
AirTAC brand, with indicator |
|
Electric component |
Schneider brand, short circuit protection function |
|
Pneumatic component |
AirTAC brand, stable and reliable |
|
Motor |
Frequency conversion motor with smooth working |
|
Automatic sewing machine |
Photoelectric induction control, automatic thread knife cut, date record & print |
|
Belt type bag conveyor |
Speed governing design |
CE certificate 50kg automatic DAP fertilizer bagging machine suit for weighing and bagging 10kg-50kg granule materials such as fertilizer, animal feed, grain, sugar, rice, beans into open mouth bags then closed by sewing(thread stitching)

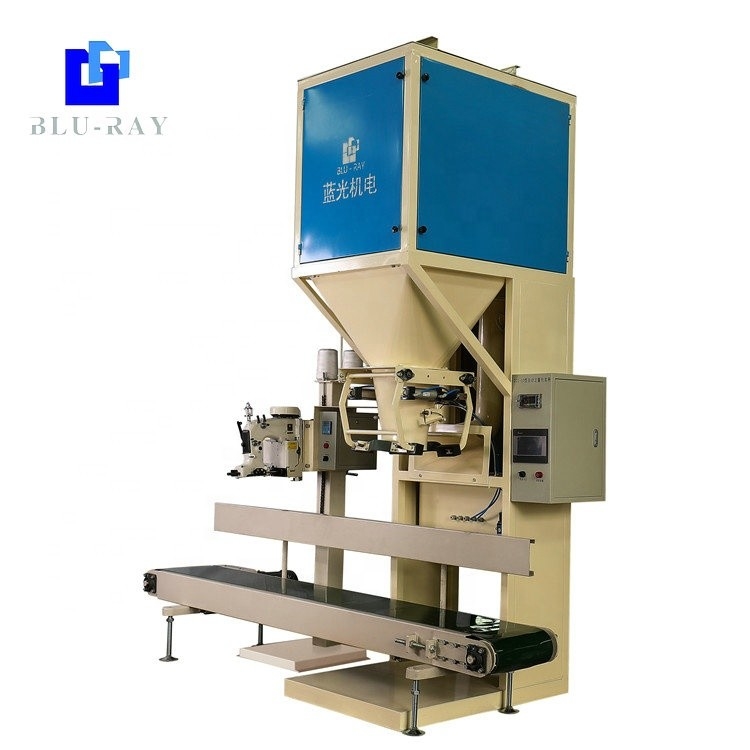

DCS-50WL 240-360bag/hour 50kg automatic DAP fertilizer bagging machine photo for your reference
DCS-50L 360-480bags/hour 50kg automatic DAP fertilizer bagging machine photo for your reference
DCS-50SK 500-600bag/hour 50kg automatic DAP fertilizer bagging machine photo for your reference
50kg automatic DAP fertilizer bagging machine working process is: manual giving the bag to the packing machine outlet- automatic bag clamp by the bag clamper- automatic fertilizer feeding- automatic weighing- automatic discharge fertilizer into bags- finished discharge the bag automatic release- bag conveying to the sewing machine- bag closed by double thread stitching.
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
Our 50kg automatic DAP fertilizer bagging machine will installation 3pcs load cell and control by the PLC system with three action air cylinder, it's easy opeation by the 10" full touch screen panel with English interface. The bag closing machine we use the full automatic sewing machine, the bag sewing more stable and bags more beautiful.
50kg automatic DAP fertilizer bagging machine package:
We will installation and testing welled before the packing machine sent to you, each set of fertilizer packing machine will inner package with stretch film then out with standard export wooden box with metal frame fixed.
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-
testing-packaging and transport-after service
