Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BLU-RAY |
| Certification: | CE, ISO,CMC |
| Model Number: | DCS-2T/T |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $5,000.00 - $12,000.00 / Set |
| Packaging Details: | 1, Each ton bag packing machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month |
| Type: | Filling Machine | Condition: | New |
|---|---|---|---|
| Application: | Other | Packaging Type: | Bags, Other |
| Packaging Material: | Wood | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric And Pneumatic | Voltage: | 220V/380V/50HZ |
| Power: | 3-6kw | Dimension(L*W*H): | The Machine Size Can Be Costomized As Your Site |
| Weight: | 1000KG | Product Name: | Jumbo Bags FIBC Bags Filling Machine |
| Four Load Cell: | High Weighing Accuracy | Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow |
| Control Box: | Full Touch Screen Panel | Automatic Bag Clamp: | Sensor Control |
| PLC System: | Easy Operating | Packing Material: | Powder Products |
| Sewing Machine: | Full Automatic | OEM Service: | 15 Years R&D Experience |
| Quality Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shanghai Or Any Port Of China | ||
| High Light: | Jumbo Bag Packing Machine 1000KG,FIBC bulk bag filling equipment |
||
|
Product Name |
Screw/Auger feeding mechanism jumbo/bulk/ton/FIBC bags packing filling bagging machines |
||
|
Item |
DCS-2T/F |
||
|
Application Materials |
Powder materials such as flour, starches, lime powder, cement, fertilizer,silica sand powder,nitrate of potash, ammonium sulfate etc |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
500-3000kg/bag or customized needs |
||
|
Precision |
+/-(0.1)% FS |
||
|
Packing Capacity |
10-30 bags/hour or more fast depends on your materials | ||
|
Dimension(L*W*Hmm) |
1840*2400*3800mm, See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-6KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||

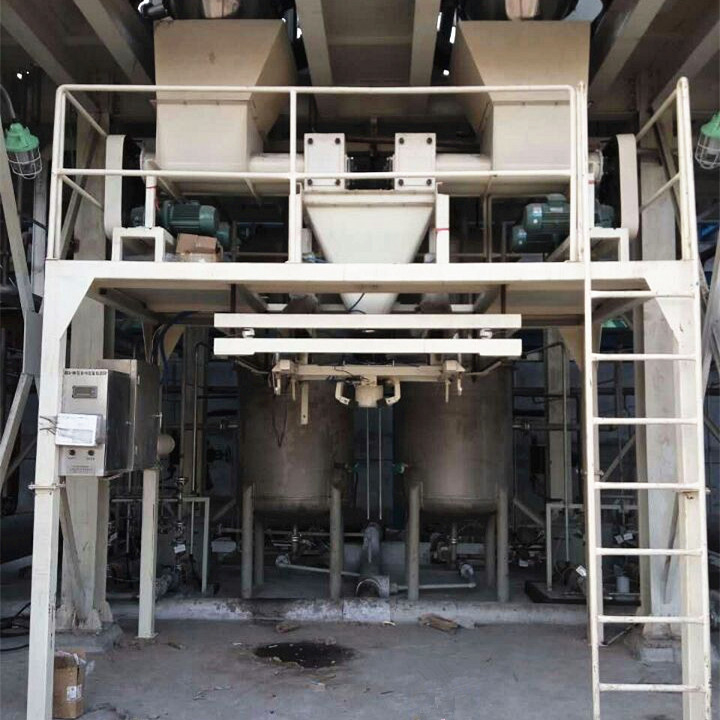

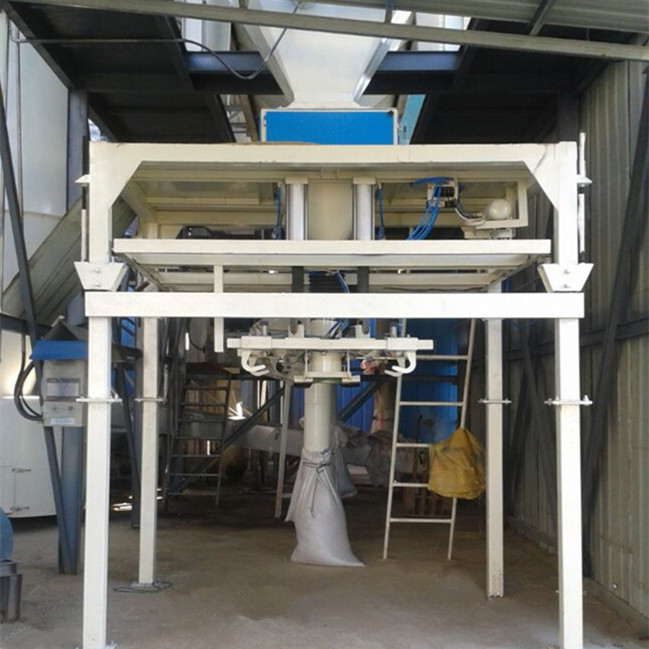

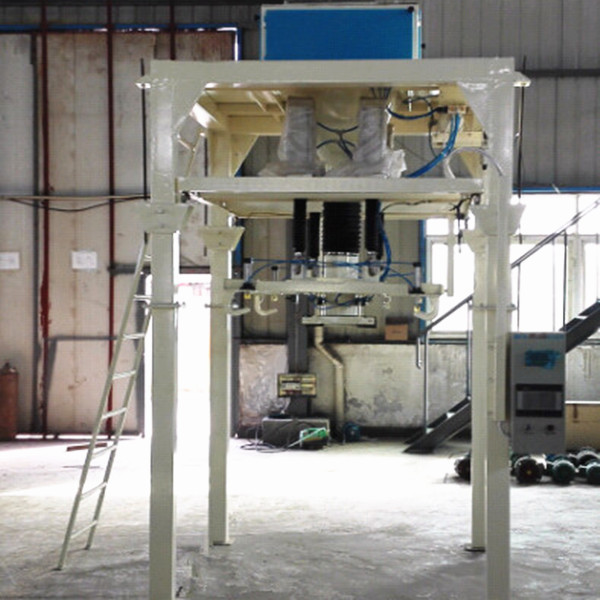

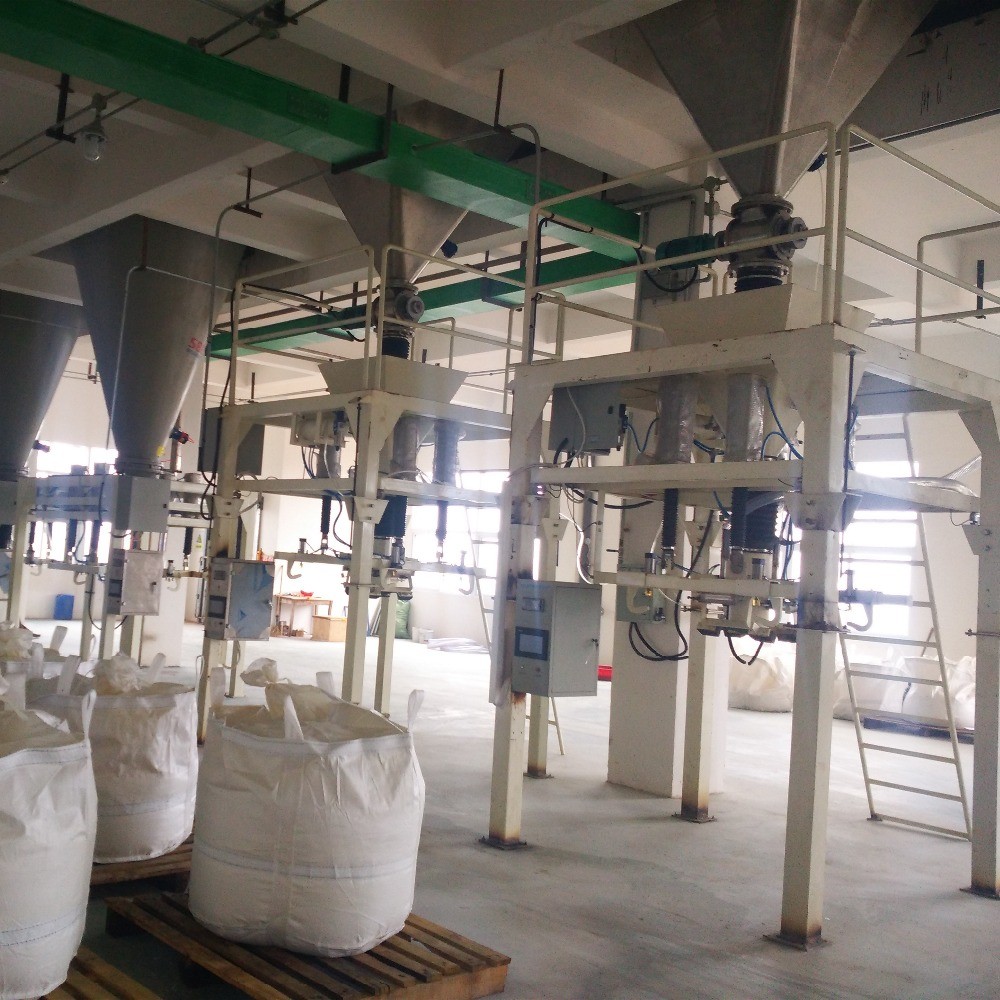

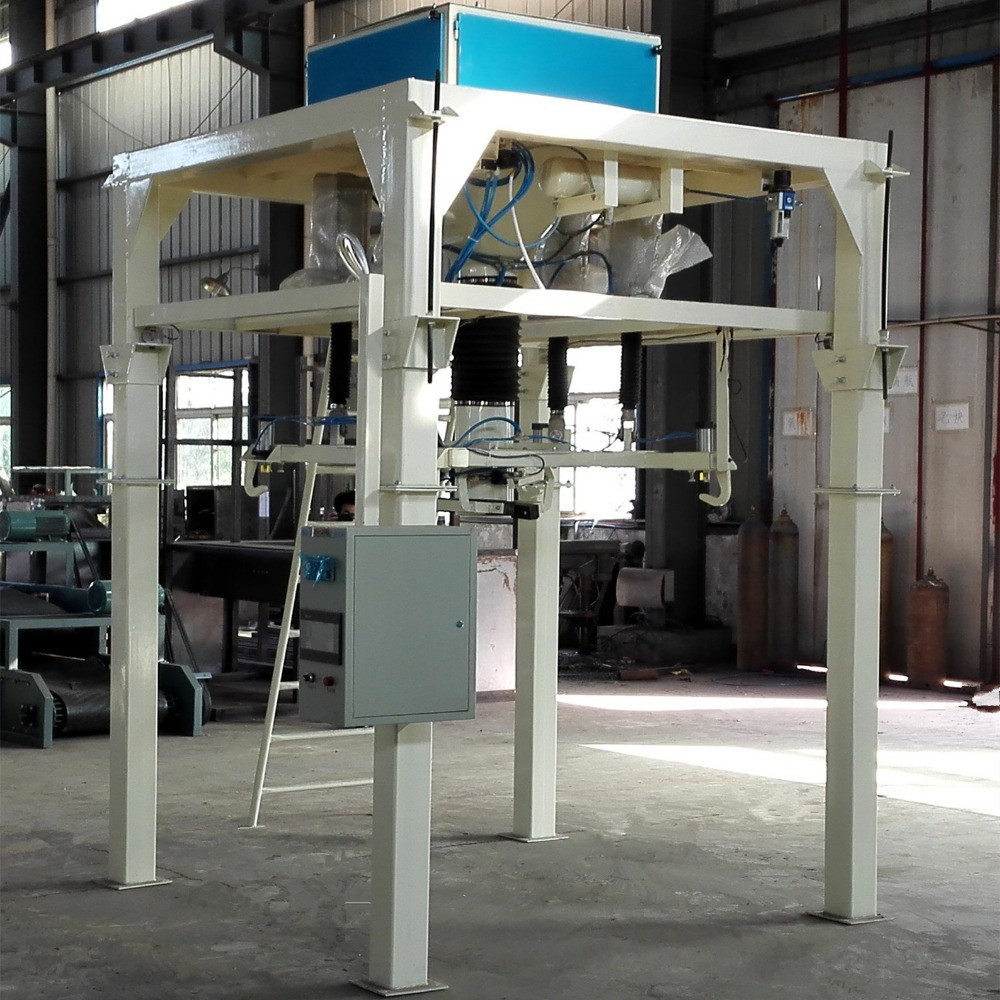

DCS-2T/F screw/auger feeding JUMBO/FIBC/BULK BAGS bagging/filling/packing machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-
testing-packaging and transport-after service
