Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

Basic Properties
Place of Origin: Changsha, China
Brand Name: Purple Horn
Certification: CMC
Model Number: DCS-50SK
Trading Properties
Minimum Order Quantity: 1 Set/Sets
Price: $5,000.00 - $15,000.00 / Set
Supply Ability: 50 Set/Sets per Month 25kg bags granular prill urea vertical packing machine
Product Summary
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine Product Description 1, Product Name: Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 2, Item: DCS-50SK Application materials small size granular materials such as ...

Product Details

Condition: New
Application: Chemical, Commodity, Food, Machinery & Hardware, Textiles, Compost, Fertilizer, Urea Etc
Packaging Type: Bags, Open Mouth Bags Such As Woven Bags
Packaging Material: Wood, Wooden Case
Automatic Grade: Automatic
Driven Type: Electric
Voltage: AC220V/380V(Three Phase Four Line)
Power: About 3KW
Weight: About 1 T
Dimension(L*W*H): 4000*1500*4040mm
Product Name: 25kg Bags Granular Prill Urea Vertical Packing Machine
Six Load Cell: High Weighing Accuracy
Three Travelling Cylinder: Feeding Speed With Fast-midium-slow
Control Box: Full Touch Screen Panel
Automatic Bag Clamp: Sensor Control
PLC System: Easy Operating
Packing Material: Fertilizer, Compost, Urea
Sewing Machine: Full Automatic
OEM Service: 15 Years R&D Experience
Quality Warranty: 1 Year
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Port: All Port In China
Product Description

Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

Product Description

1, Product Name: Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine

2, Item: DCS-50SK

Application materials
small size granular materials such as compost fertilizer, urea etc
Display Resolution
5g, 10g
Weighing Range
5-50kg/bag or customized needs
Precisions
+/-(0.1-0.2)% FS
Packing Capacity
500-600 bags/hour
Dimention(L*W*Hmm)
4000*1200*3700mm, the size can be customized according to your site
Power Supply
AC220V/380V, 50HZ, 1P/3P, customized available
Air Source
0.5-0.7 Mpa
Power
3KW
Working Temperature
-10~40 ℃
Relative Humidity
≤90% RH(Non-condesing)
Application
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 0
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 1

Application Materials(products)

Gravity feeding type packing machine suit for pack small size granular or powder with good flow,such as plastic particles,feed, fertilizer( urea etc), grain,sugar, bean, rice etc

Application Bags(open mouth bags)

This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc

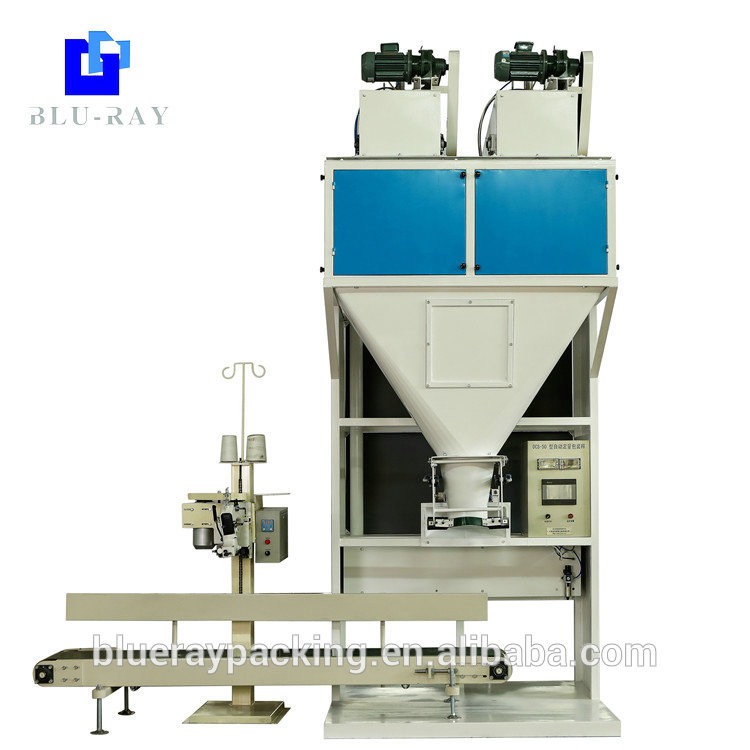

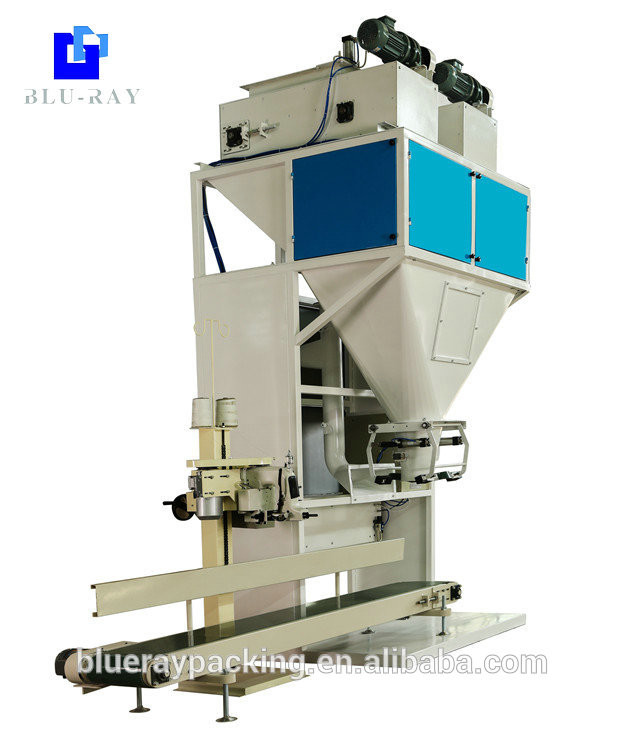

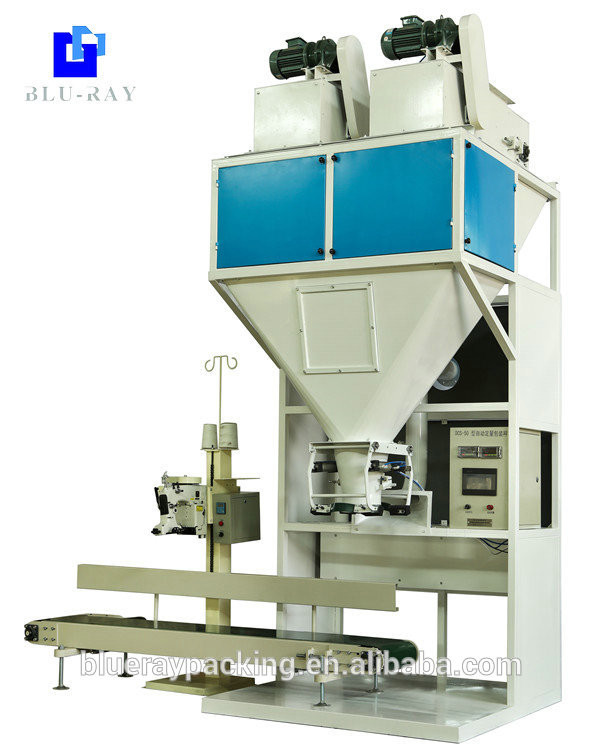

Detailed Images
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 2
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 3
Working Process
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 4

Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic    discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing

Advantage
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 5

Control Box

+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available





SIX pieces of Load Cell

(weighing sensor)

+Famous brand load cell, more stable
+Installed 3pieces load cell, high weighing accuracy







Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 6
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 7







Three-travelling Air Cylinder

+Control by the PLC system and three-travelling
air cylinder, feeding speed with fast-midium-slow





Automtic Bag Clamp/Loose Mechanism

+Photoelectric sensor switch
+Big force 2pcs air cylinder control
+Automatic bag clamp and loose
+Automatic materials dischage
+Suit for different bag size

Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 8
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 9



Dust Air Outlet

+All of our packing machine will install air outlet
+Connect your dust removal device, making the
working environment more hygienic
+Add our pulse dust collector,
dust collection≥99.8%

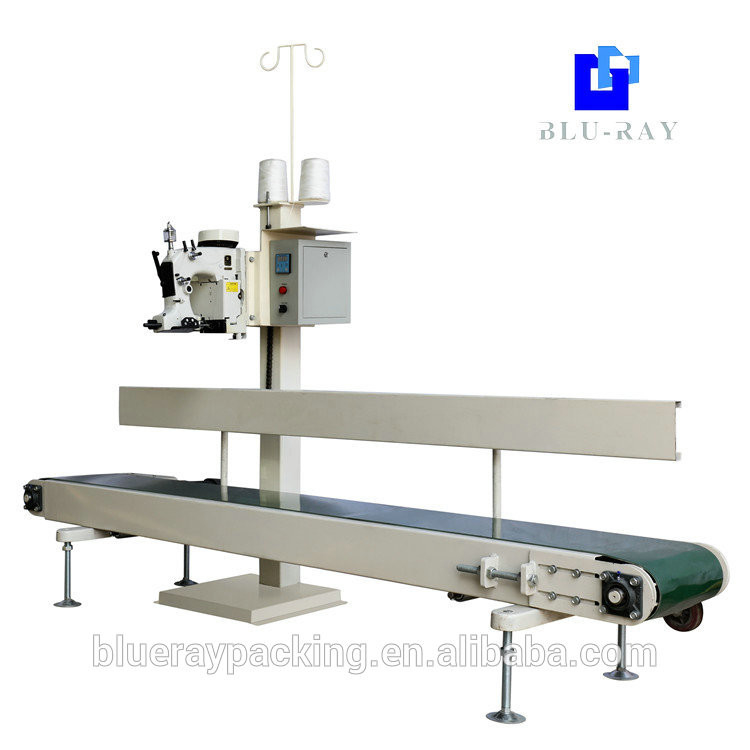

Automatic Sewing Machine

+Automatic bag top folding device(opitional)
+Photoelectric sensor switch
+Automatic knife thread cut
+Single needle double thread chain
+Production data record & print
+Thread end length ajustable
+Bag sewing heigth adjustable
+With automatic bag conveyor

Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 10
Packing & Delivery
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 11
Related Products
Item
DCS-50WL
DCS-50L
DCS-50SK
Application materials
Small size granular or powder with good flow
Display Resolution
5g, 10g
Weighing Range
5-50kg/bag or customized
Precisions
+/-(0.1-0.2)% FS
Packing Capacity
200-300 bags/hour
360-480 bags/hour
500-600 bags/hour
Dimention(L*W*Hmm)
3000*1100*2600
3000*1100*3200
4000*1200*3700
Power Supply
AC220V/380V, 50HZ, 1P/3P, customized available
Air Source
0.5-0.7 Mpa
Power
3KW
3KW
6KW
Working Temperature
-10~40 ℃
Relative Humidity
≤90% RH(Non-condesing)
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 12
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 13
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 14

DCS-50WL(click ☝)

Non weighing hopper gravity feeding   type packing machine

packing speed 200-300bags/hour

DCS-50L(click ☝)

Single weighing hopper gravity

feeding type packing machine
packing speed 360-480bags/hour

DCS-50SK(click ☝)

Dual weighing hopper gravity feeding   type packing machine
packing speed 500-600bags/hour

Our Company
Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 15



Changsha Blue Ray M & E Co., Ltd

-15 years professional manufacturer of packing machines, sewing/heat sealing machine, automatic palletizer

machine, elevator/conveyor etc
-More than 10 person engineers team, OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service

Flowing chart:

Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service

Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 16

Certificate

We are Alibaba Gloden Supplier with assessment and the BV certificate, CE certificate and CMC (China Metrology Certification)

Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 17

Exhibition

We have attend many trade shows in China mainland and overseas, such as Canton Fair, HK Source Fair, IPPE, China

Feed Expo etc.

Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 18

What's customers say about us

Our packing machines have exported to many countries, such as USA, Australian, Korea, Philippines, Malaysia,

Oman, Mongolia, Iraq, Iran, Bulgaria etc. They all choose our packing machine, sewing machine and other equioments.

Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 19

Engineering Case

We can provide all equipments of packaging line, including the batching system, packing machines(semi-automatic/full automatic), hopper, conveyor(2/3/4/5/8 meters etc), various item of elevator(belt/screw/bucket elevator etc),automatic bag stacking/palletizer machine, air compressor, sewing/heat sealing machine, thread for sewing and so on.

We have made many cases of packaging solution for feed, fertilizer, flour, starches, grain, soil, stone, manure, chemical,

mining, coal, cement, lime powder etc industries.

Fast packing speed 500-600 bags/hour 25kg bags granular prill urea vertical packing machine 20

FAQ:

Q1: How could I choose the right packing machine?

A: We have various item of packing machine to suit for pack different materials(products), just let me know your

product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are availbale, we have more than 10 person engineers team and R&D team.

Q2: What's service you can provide if we buy your machine?

A: 1, One year quality guaranteed, during this guarantee period, no matter what’s kind of parts damaged, we will provide

free change for you. All equipment for more than a year warranty, exchange of damaged parts, only charge a cost of

spare parts.

2, We will provide you the guide service on the operation of the machine.

3, If required, we will dispatch technician to your country for installation guide, commissioning& adjusting the machine and training the workers on conditon that you need affords all cost from China to your company including food,

accommodation, transportation etc and extra USD80 per day.

Q3: What's your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you

pay the balance.

Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF

Q5: How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the

items and the quantity of your order.

Q6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A: 1, We keep good quality and competitive price to ensure our customers benefit
2, We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
