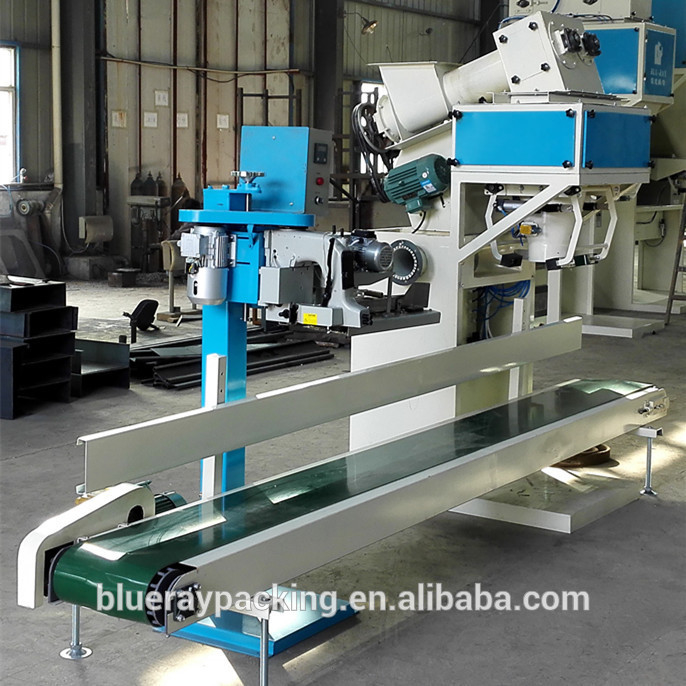

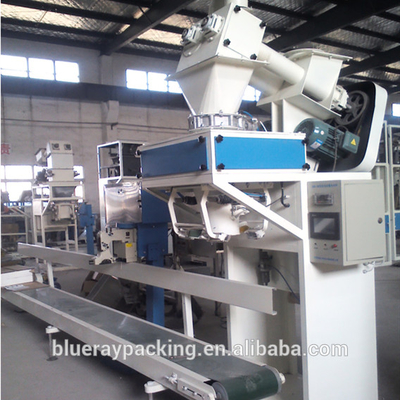

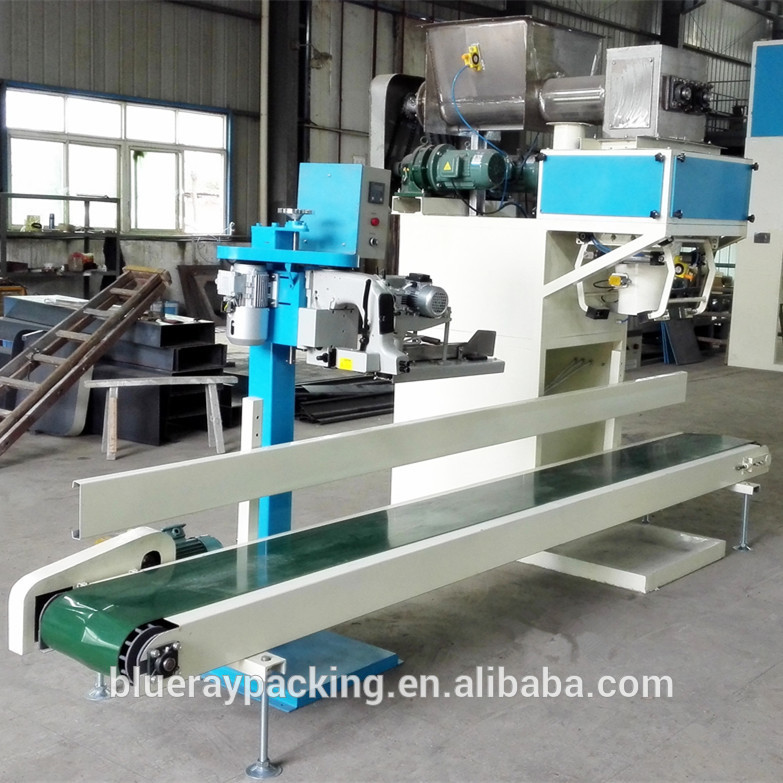

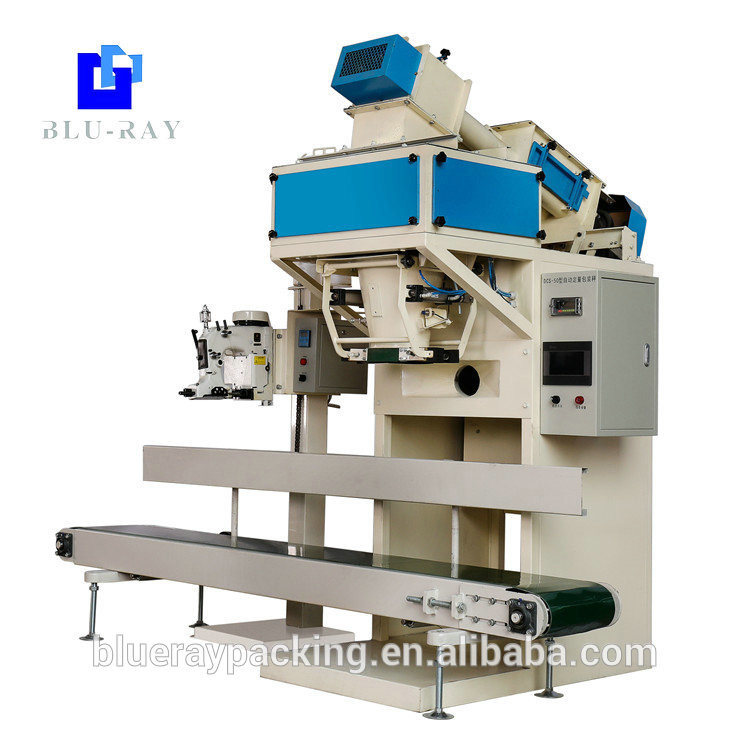

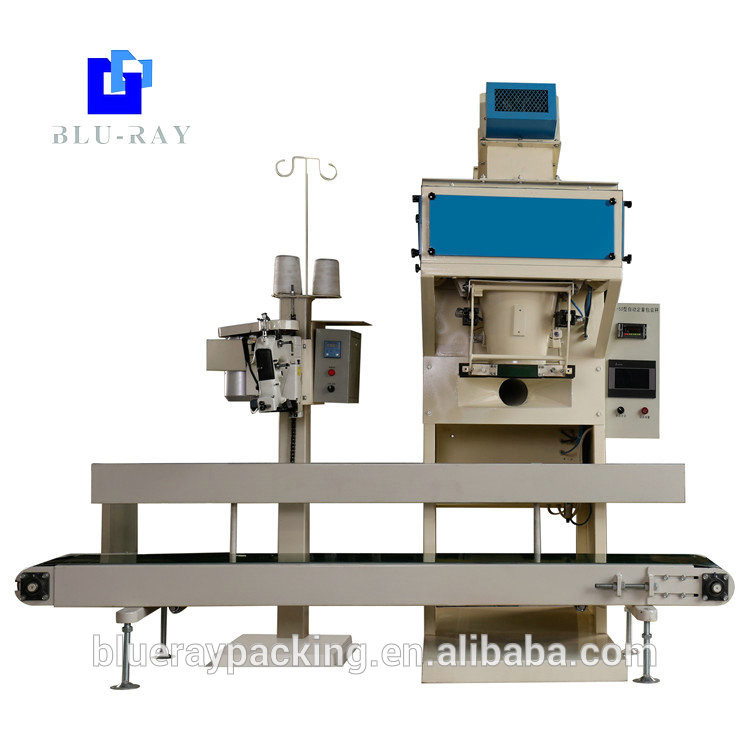

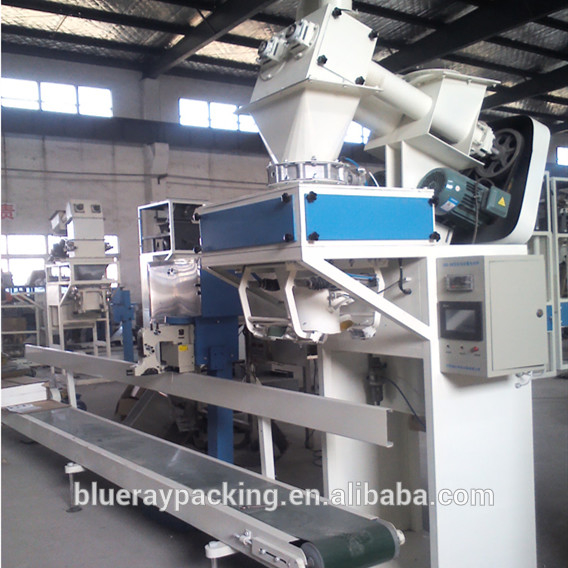

Automatic wheat flour packing machine for kraft paper bag

Basic Properties
Place of Origin: Changsha, China
Brand Name: Purple Horn
Certification: CE ISO
Trading Properties
Minimum Order Quantity: 1 - 1 Sets
Price: $12,000.00
Supply Ability: 100 Set/Sets per Month Automatic wheat flour packing machine for kraft paper bag
Tags

semi automatic weighing and filling machine

powder weighing and filling machine

50 kg packing machine
Product Summary
Product Description1, Product Name: Automatic wheat flour packing machine for kraft paper bag2, Item: DCS-50WF Application materials automatic paper bag flour packing machine for powder Display Resolution 5g, 10g Weighing Range 10-50kg/bag or customized needs Precisions +/-(0.1-0.2)% FS Packing ...

Product Details

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Wheat Flour Packing Machine
Application: Powder
Packaging Type: Open Mouth Bags, Bags, Barrel
Dimension(L*W*H): 3000*1200*2500mm
Product Name: Automatic Wheat Flour Packing Machine For Kraft Paper Bag
Three Load Cell: High Weighing Accuracy
Double Screw Feeder: Feeding Speed With Fast-midium-slow
Control Box: Full Touch Screen Panel
Automatic Bag Clamp: Sensor Control
PLC System: Easy Operating
Packing Material: Powder
Sewing Machine: Full Automatic
OEM Service: 15 Years R&D Experience
Quality Warranty: One Year
Condition: New
Packaging Material: Wood, Wheat Flour Packing Machine In Wooden Case
Automatic Grade: Semi-automatic
Driven Type: Pneumatic
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Type: Other
Voltage: AC220V/380V/50HZ
Power: 3KW
Weight: 1500KG
Port: Shanghai Or Any Port In China
Product Description
Product Description

1, Product Name: Automatic wheat flour packing machine for kraft paper bag

2, Item: DCS-50WF

Application materials
automatic paper bag flour packing machine for powder
Display Resolution
5g, 10g
Weighing Range
10-50kg/bag or customized needs
Precisions
+/-(0.1-0.2)% FS
Packing Capacity
120-180 bags/hour
Dimention(L*W*Hmm)
3000*1200*2600mm, the size can be customized according to your site
Power Supply
AC220V/380V, 50HZ, 1P/3P, customized available
Air Source
0.5-0.7 Mpa
Power
3KW
Working Temperature
-10~40 ℃
Relative Humidity
≤90% RH(Non-condesing)
Application
Automatic wheat flour packing machine for kraft paper bag 0
Automatic wheat flour packing machine for kraft paper bag 1

Application Materials(products)

Screw feeding type packing machine suit for pack   powder of any industry,such as flour, starches, lime powder, cement, fertilizer,silica sand powder,            nitrate of potash, ammonium sulfate etc

Application Bags(open mouth bags)

This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc

Detailed Images
Automatic wheat flour packing machine for kraft paper bag 2
Automatic wheat flour packing machine for kraft paper bag 3
Automatic wheat flour packing machine for kraft paper bag 4
Working Process
Automatic wheat flour packing machine for kraft paper bag 5

Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic    discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing

Advantage
Automatic wheat flour packing machine for kraft paper bag 6

Control Box

+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available



Three pieces of Load Cell

(weighing sensor)

+Famous brand load cell, more stable
+Installed 3pieces load cell, high weighing accuracy




Automatic wheat flour packing machine for kraft paper bag 7
Automatic wheat flour packing machine for kraft paper bag 8




Dual Screw Feeding Mechanism

+Dual screw design(coarse screw+fine screw)
+Control by the PLC system and dual motor
+Feeding speed with fast-midium-slow due to the motor frequency change




Automtic Bag Clamp/Loose Mechanism

+Photoelectric sensor switch
+Big force 2pcs air cylinder control
+Automatic bag clamp and loose
+Automatic materials dischage
+Suit for different bag size

Automatic wheat flour packing machine for kraft paper bag 9
Automatic wheat flour packing machine for kraft paper bag 10


Dust Air Outlet

+All of our packing machine will install air outlet
+Connect your dust removal device, making the
working environment more hygienic
+Add our pulse dust collector,
dust collection≥99.8%

Automatic Sewing Machine

+Automatic bag top folding device(opitional)
+Photoelectric sensor switch
+Automatic knife thread cut
+Single needle double thread chain
+Production data record & print
+Thread end length ajustable
+Bag sewing heigth adjustable
+With automatic bag conveyor

Automatic wheat flour packing machine for kraft paper bag 11
Packing & Delivery
Automatic wheat flour packing machine for kraft paper bag 12
Automatic wheat flour packing machine for kraft paper bag 13
Automatic wheat flour packing machine for kraft paper bag 14

Package in wooden case

All equipments will package in the
wooden case and fixed by the steel
then in the cantainer

Transport by truck

We will transport the machine to
Shanghai port(or any port of China you need)by the truck

Ship by the cargo vessel

All machines will in container then
ship to the sea port of your country by the boat

Related Products
Item
DCS-50WF
DCS-50F
DCS-50SF
Application materials
All kinds of power for any industry
Display Resolution
5g, 10g
Weighing Range
5-50kg/bag or customized
Precisions
+/-(0.1-0.2)% FS
Packing Capacity
120-180 bags/hour
240-360 bags/hour
500-600 bags/hour
Dimention(L*W*Hmm)
3000*1200*2600
3000*1200*3200
4000*1200*3700
Power Supply
AC220V/380V, 50HZ, 1P/3P, customized available
Air Source
0.5-0.7 Mpa
Power
3KW
3KW
6KW
Working Temperature
-10~40 ℃
Relative Humidity
≤90% RH(Non-condesing)
Automatic wheat flour packing machine for kraft paper bag 15
Automatic wheat flour packing machine for kraft paper bag 16
Automatic wheat flour packing machine for kraft paper bag 17

DCS-50WF（click ☝）

Non weighing hopper screw feeding     type packing machine

packing speed 120-180 bags/hour

DCS-50F（click ☝）

Single weighing hopper screw

feeding type packing machine
packing speed 240-360 bags/hour

DCS-50SF（click ☝）

Dual weighing hopper screw feeding    type packing machine
packing speed 500-600 bags/hour
