Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BLU-RAY |
| Certification: | CE Certificate |
| Model Number: | ZDBZ-600 |
| Minimum Order Quantity: | 1.0 Set/Sets |
| Price: | $30,000.00 - $60,000.00 / Set |
| Packaging Details: | 1, automatic bag palletizer machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month automatic bagging machine |
| Local Service Location: | Thailand | Showroom Location: | None |
|---|---|---|---|
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Application: | Granule Materials Such As Animal Feed, Grains, Rice Etc |
| Packaging Type: | Woven Bags, Kraft Bags, Paper Bags, Plastic Bags Etc, Bags | Driven Type: | Electric And Pneumatic |
| Dimension(L*W*H): | Depends | After-sales Service Provided: | Field Maintenance And Repair Service |
| Product Name: | Automatic Bagging Machine | Capacity: | 500-600bags Hourly |
| Machine Name: | Full Automatic Bagging Machine | Bag Type: | Woven Bag |
| Main Function: | Auto Weighing | Usage: | Weighing Packing Palletizing |
| Packaging Material: | Inner Stretch Film, Out Wooden Box | Voltage: | 220V/380V/50HZ |
| Power: | 3KW | Weight: | 1500KG |
| High Light: | PLC Pellet Packing Machine,Pneumatic Grains Pellet Packing Machine,Fertilizer Automatic Bagger Machine |
||

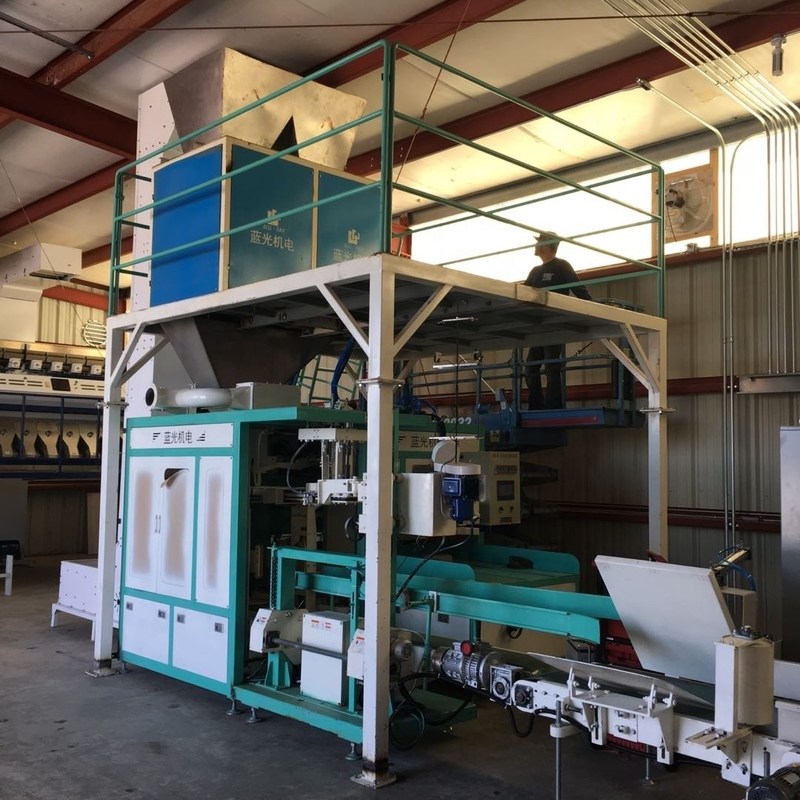

| Item | ZDBZ-600 FULL AUTOMATIC BAGGING SEWING MACHINE | ||
| Application materials | each type small size granule mateials such as animal feed, fertilizer, rice, grains, PE,PP etc | ||
| Weighing range | 20-50kg/bag or customized | ||
| Scale interval | 10g | ||
| Feeding type | gravity feeder/belt feeder | ||
| Weighing hopper | dual-weighing hopper | ||
| Precision | ±50-100g based on your materials characteristics | ||
| Capacity | around 600bags/hour | ||
| System | PLC system and 10" full touch scren HMI | ||
| Aplicable bag type | airtight bags, woven bags with lining, paper bags, kraft bags etc | ||
| recommend bag size: width 50-65cm, length 80-110cm or customized | |||
| Air source | 0.5-0.8Mpa, 750nl/min | ||
| Dimensiion(L*W*Hmm) | 4000*2800*2400mm, details size see the drawing | ||
| Power | 4.28kw | ||
| Voltage | single/three phase AC220V/AC380V/50HZ | ||
| Working environment | (-10℃~40℃) | ||
| Relative humidity | ≤90%RH non condensation | ||
| Machine materials | Q235 carbon steel with anti-rust painting or product contact parts 304 stainless steel, non-contact parts carbon steel. | ||
1, inner package with stretch anti-rust and avoid the machine surface broken.
2, the full automatic packing machine before send to you will installation and testing welled then whole set package in
40HQ(container), the machine weight around 4000kg.
