Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BlueRay |
| Certification: | CE ISO |
| Model Number: | DCS-50SK |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $8,000.00 - $15,000.00 / Set |
| Packaging Details: | 1, Each set of packing machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month |
| Application: | Granular Materials Such As Feed, Fertilizer, Grain,sugar, Bean, Rice | Packaging Type: | Open Mouth Bag, Bags |
|---|---|---|---|
| Dimension(L*W*H): | 3000*1200*3200mm | Product Name: | DCS-50SK Packing Machine |
| Three Load Cell: | High Weighing Accuracy | Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow |
| Control Box: | Full Touch Screen Panel | Automatic Bag Clamp: | Sensor Control |
| PLC System: | Easy Operating | Packing Material: | Granular Or Good Flow Powder |
| Sewing Machine: | Full Automatic | OEM Service: | 15 Years R&D Experience |
| Quality Warranty: | One Year | Type: | Multi-Function Packaging Machine |
| Condition: | New | Function: | FILLING, Sealing, Weighing,Packing |
| Packaging Material: | Wood, Exported Wooden Box | Automatic Grade: | Semi-automatic |
| Driven Type: | Pneumatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Voltage: | AC380V | Power: | About 3kw |
| Port: | Shanghai Or Any Port Of China | ||
| High Light: | Pellet Semi Automatic Bagging Machine,3kw Semi Automatic Bagging Machine,600 bags/hour Pellet Packing Machine |
||

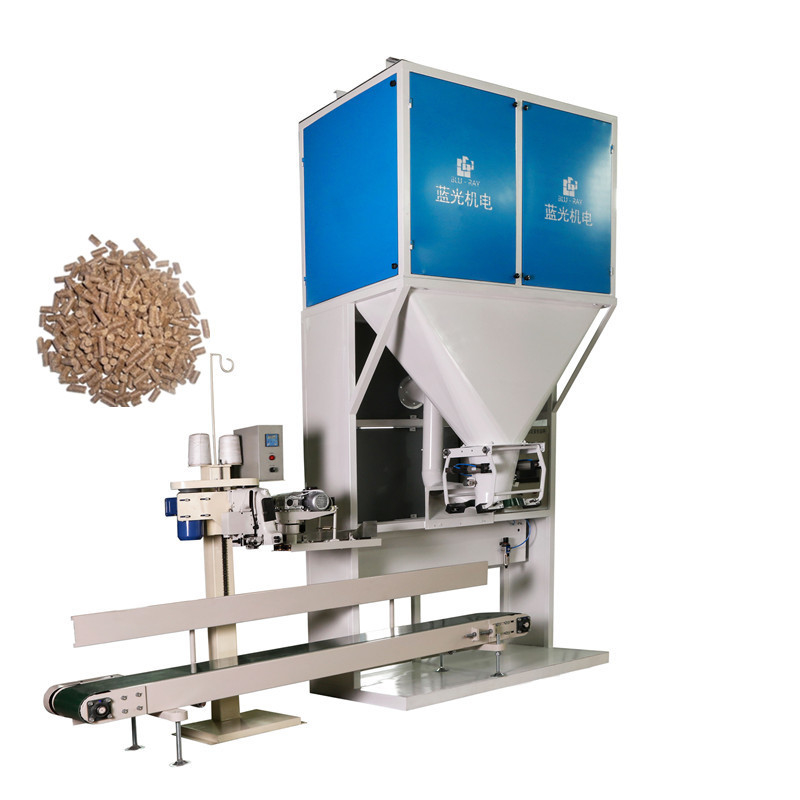

Semi automatic high accuracy 50kg big bag pet ploutry feed pellet packing machine
|
Product Name |
Dual weighing hopper gravity feeding mechanism packing/packaging/bagging/filling machine |
||
|
Item |
DCS-50SK |
||
|
Application Materials |
Granular materials such as plastic particles,feed, fertilizer( urea etc), grain,sugar, bean, rice |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
10-50kg/bag or customized needs |
||
|
Precision |
+/-(0.1-0.2)% FS |
||
|
Packing Capacity |
500-600 bags/hour or more fast depends on your materials |
||
|
Dimension(L*W*Hmm) |
See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-4KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||
|
Description |
Remarks |
|
Packing scale framework |
Floor structure, high quality carbon steel |
|
Feeding mechanism |
Gravity feeding type, three grade feeding speed with fast-medium-slow |
|
Weighing sensor |
Installation 3pcs(DCS-50WL,DCS-50L)/6pcs(DCS-50SK) load cell, famous brand |
|
Control system |
PLC system, full automatic, data record & print function |
|

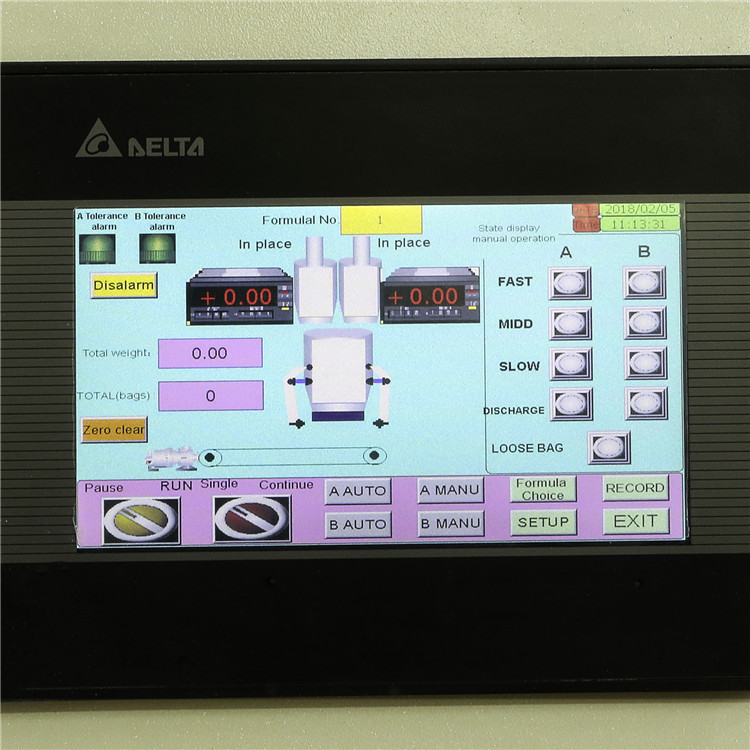

Control box |
Color touch screen, English/Chinese interface |
|
Cylinder |
AirTAC brand, big force, high quality, more stable, long service life |
|
Solenoid valve |
AirTAC brand, with indicator |
|
Electric component |
Schneider brand, short circuit protection function |
|
Pneumatic component |
AirTAC brand, stable and reliable |
|
Motor |
Frequency conversion motor with smooth working |
|

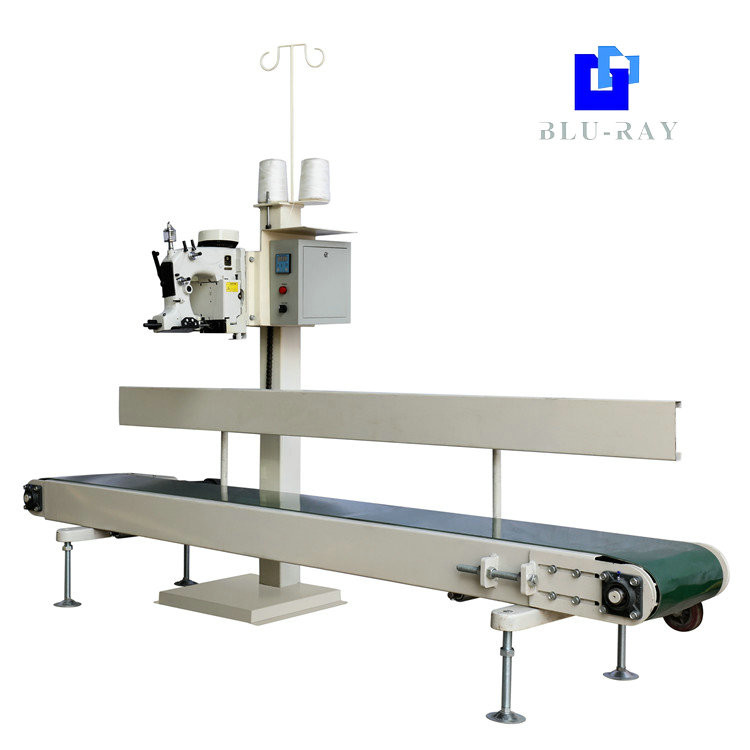

Automatic sewing machine |
Photoelectric induction control, automatic thread knife cut, date record & print |
|
Belt type bag conveyor |
Speed governing design |

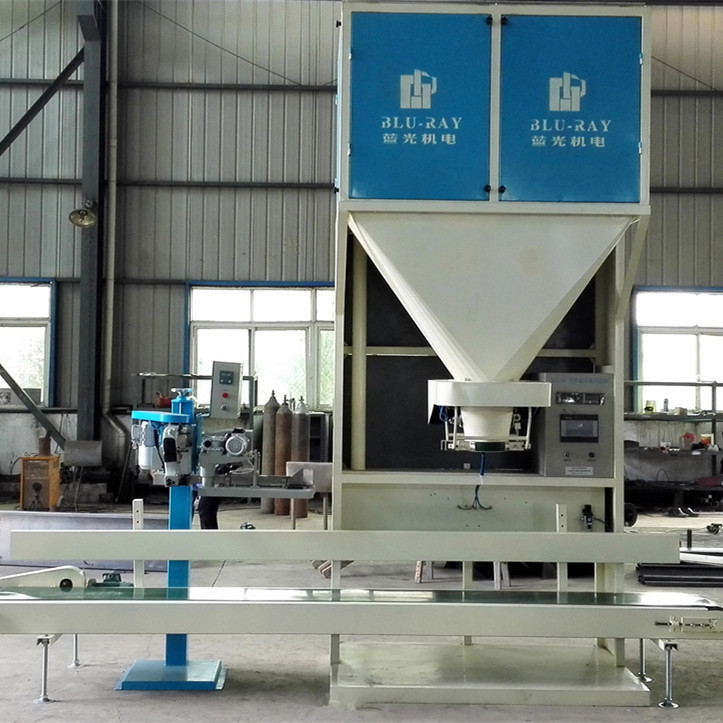

DCS-50SK 500-600bag/hour GRAVITY FEEDING packing/packaging/bagging/filling machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
