Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | Blueray |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1.0 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Packaging Details: | 1, Each cassava flour powder packing filling machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month flour powder packing filling machine |
| Warranty: | 1 YEAR | Applicable Industries: | Manufacturing Plant, Powder Bagging |
|---|---|---|---|
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Thailand |
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 YEAR | Core Components: | PLC |
| Packaging Type: | Flour Powder In Open-mouth Bags, Bags | Dimension(L*W*H): | 3000*1200*2500mm |
| After-sales Service Provided: | Video Technical Support, Engineers Available To Service Machinery Overseas | Key Selling Points: | High-accuracy |
| Product Name: | Semi Automatic 25kg Maize Flour Powder Filling Packing Machine Price | Three Load Cell: | High Weighing Accuracy |
| Double Screw Feeder: | Feeding Speed With Fast-midium-slow | Control Box: | Full Touch Screen Panel |
| Automatic Bag Clamp: | Sensor Control | PLC System: | Easy Operating |
| Packing Material: | Powder, Flour, Cassava Flour, Maize Flour | Sewing Machine: | Full Automatic |
| OEM Service: | 15 Years R&D Experience | Application: | Chemical |
| Packaging Material: | Wood, Flour Powder Packing Filling Machine In Wooden Case | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric | Voltage: | 220V/380V/50HZ |
| Power: | 3KW | Weight: | 1500KG |
| Port: | Shanghai Or Any Port In China | ||
| High Light: | flour powder packing filling machine,1500KG Semi Automatic Bagging Machine,3 speed open mouth bagger machine |
||

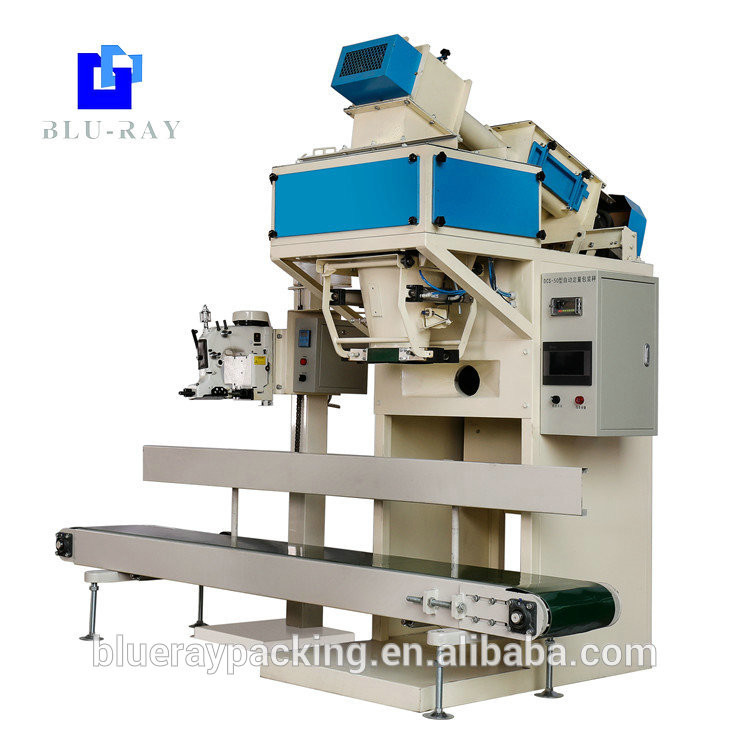

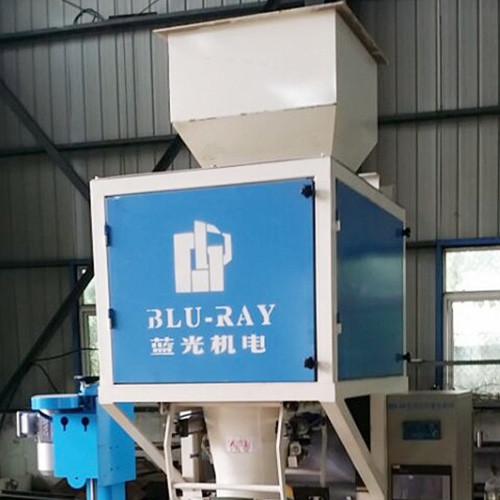

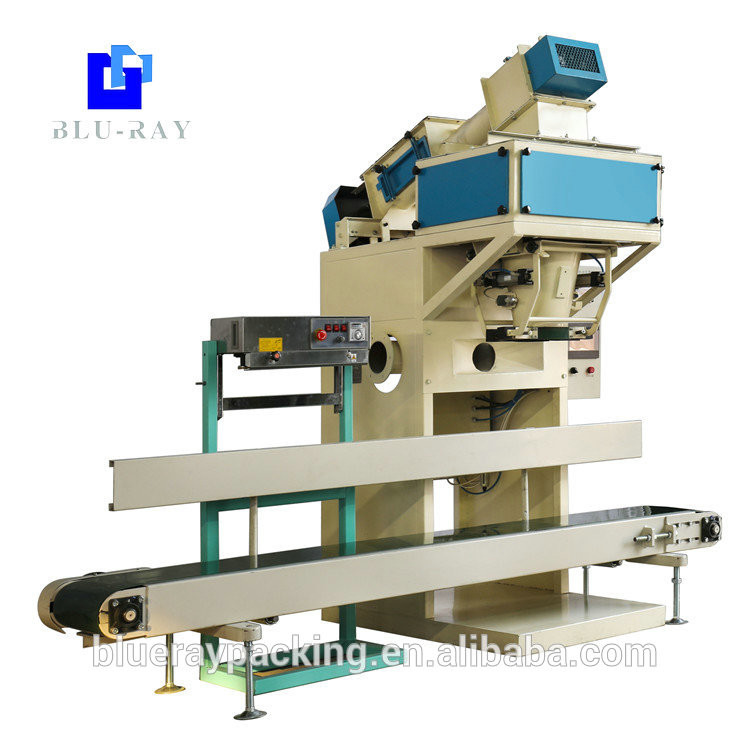

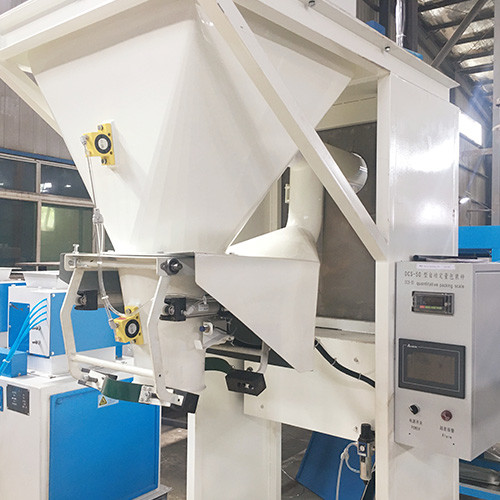

1, Product Name: 2017 high speed manual semi automatic detergent flour powder packing filling machine
2, Item: DCS-50WF
|
Application materials
|
Maize, flour, resin, powder in all industry
|
|
|
||
|
Display Resolution
|
5g, 10g
|
|
|
||
|
Weighing Range
|
5-50kg/bag or customized needs
|
|
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
|
|
||
|
Packing Capacity
|
120-180 bags/hour
|
|
|
||
|
Dimention(L*W*Hmm)
|
3000*1200*2600mm, the size can be customized according to your site
|
|
|
||
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
|
|
||
|
Air Source
|
0.5-0.7 Mpa
|
|
|
||
|
Power
|
3KW
|
|
|
||
|
Working Temperature
|
-10~40 ℃
|
|
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
|
|
||
Screw feeding type packing machine suit for pack powder of any industry,such as flour, starches, lime powder, cement, fertilizer,silica sand powder, nitrate of potash, ammonium sulfate etc
This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
