Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BlueRay |
| Certification: | CE ISO |
| Model Number: | DCS-50SD |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Packaging Details: | 1.normally packing in wooden cases(FCL, 20 feet container). 2. If any special requirements ,we will pack it as requested. |
| Supply Ability: | 100 Set/Sets per Month fertilizer packing machine |
| Application: | Powder, Feed, Grease, Grain, Food, Fertilizer, Sugar, Plastic, Etc, Chemical, Commodity, Food, Machinery & Hardware, MEDICAL | Packaging Type: | Open Mouth Bags, Bags |
|---|---|---|---|
| Dimension(L*W*H): | 4000*1500*3800mm | Product Name: | Fertilizer Manual Packing Machine |
| Material: | Carbon Steel, Stainless Steel | Weighing: | 5-50kg |
| Suitable For Material: | Granule,flake, Lump,coarse Powder And Mixer | Advantage: | Three-grade Feeding Speed, Three Sensor, Full Touch Screen |
| Experience: | 10 Years In Bagging Machine | OEM, ODM: | Yes |
| Warranty: | One Year | Service: | Reply Within 24 Hours |
| Weight: | 1500KG | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Power: | 3KW | Condition: | New |
| Packaging Material: | Metal, Wood, Packing Machine In Wooden Case | Driven Type: | Pneumatic |
| Voltage: | 220V/380V/50HZ | Automatic Grade: | Semi-automatic |
| Type: | Other | Port: | Shanghai Or Any Port Of China |
| High Light: | 50kg Fertilizer Bagging Equipment,5kg Fertilizer Bagging Equipment,ISO Approved Fertilizer Bagging Equipment |
||

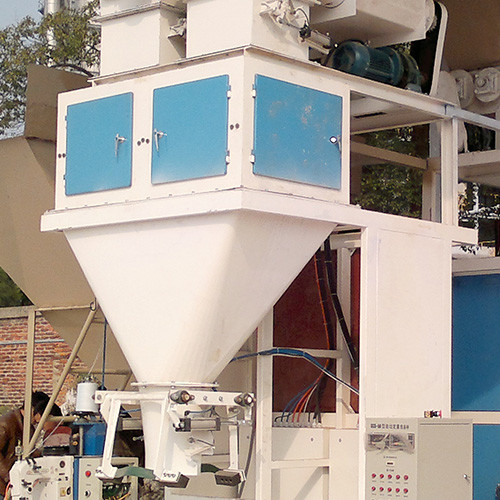

1, Product Name: High quality manual organic fertilizer packing machine
2, Item: DCS-50SD
Application materials | flake,lump,block,aggregation,mixture products of any industry | ||
Display Resolution | 5g, 10g | ||
Weighing Range | 5-50kg/bag or customized needs | ||
Precisions | +/-(0.1-0.2)% FS | ||
Packing Capacity | 500-600 bags/hour | ||
Dimention(L*W*Hmm) | 4000*1500*3900mm, the size can be customized according to your site | ||
Power Supply | AC220V/380V, 50HZ, 1P/3P, customized available | ||
Air Source | 0.5-0.7 Mpa | ||
Power | 3KW | ||
Working Temperature | -10~40 ℃ | ||
Relative Humidity | ≤90% RH(Non-condesing) | ||
Belt feeding type packing machine suit for pack flake,lump,block,aggregation,mixture products, such as gravel,pebble,stone,manure,organic fertilizer, soil, sawdust,animal feed(big size/mixture),coal briquette, aluminum sulfate etc
This bagging machine is especially designed for pack materials(products) into open mouth bags, such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
| | | | | |
Control Box+Full touch screen panel | Three pieces of Load Cell(weighing sensor)+Famous brand load cell, more stable | Dual Screw Feeding Mechanism+Dual screw design(coarse screw+fine screw) | Automtic Bag Clamp/Loose Mechanism+Photoelectric sensor switch | Dust Air Outlet+All of our packing machine will install air outlet | Automatic Sewing Machine+Automatic bag top folding device(opitional) |
All equipments will package in the
wooden case and fixed by the steel
then in the cantainer
We will transport the machine to
Shanghai port(or any port of China you need)by the truck
All machines will in container then
ship to the sea port of your country by the boat
Item | DCS-50WD | DCS-50D | DCS-50SD |
Application materials | flake,lump,block,aggregation,mixture products of any industry | ||
Display Resolution | 5g, 10g | ||
Weighing Range | 5-50kg/bag or customized | ||
Precisions | +/-(0.1-0.2)% FS | ||
Packing Capacity | 180-240 bags/hour | 300-420 bags/hour | 500-600 bags/hour |
Dimention(L*W*Hmm) | 3000*1500*2800 | 3000*1500*3500 | 4000*1500*3900 |
Power Supply | AC220V/380V, 50HZ, 1P/3P, customized available | ||
Air Source | 0.5-0.7 Mpa | ||
Power | 3KW | 3KW | 6KW |
Working Temperature | -10~40 ℃ | ||
Relative Humidity | ≤90% RH(Non-condesing) | ||
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
