Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BlueRay |
| Certification: | CE ISO |
| Model Number: | DCS-2T/D |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $5,000.00 - $12,000.00 / Set |
| Packaging Details: | 1, Each FIBC bag packing machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month |
| Condition: | New | Packaging Type: | Bags, Barrel, Other |
|---|---|---|---|
| Packaging Material: | Wood, Other | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric And Pneumatic | Voltage: | 220V/380V/50HZ |
| Power: | 6KW | Weight: | 1500KG |
| Dimension(L*W*H): | 1840*1840*4500mm | Product Name: | FIBC Bags Packing/packaging/bagging/filling Machine |
| Four Load Cell: | High Weighing Accuracy | Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow |
| Control Box: | Full Touch Screen Panel | Automatic Bag Clamp: | Sensor Control |
| PLC System: | Easy Operating | Packing Material: | Flake/lump/mixture Products |
| Sewing Machine: | Full Automatic | OEM Service: | 15 Years R&D Experience |
| Quality Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shanghai Or Any Port Of China | ||
| High Light: | powder Jumbo Bag Packing Machine,FIBC bag Packing Machine,1.5ton weighing and packaging machine |
||
|
Product Name |

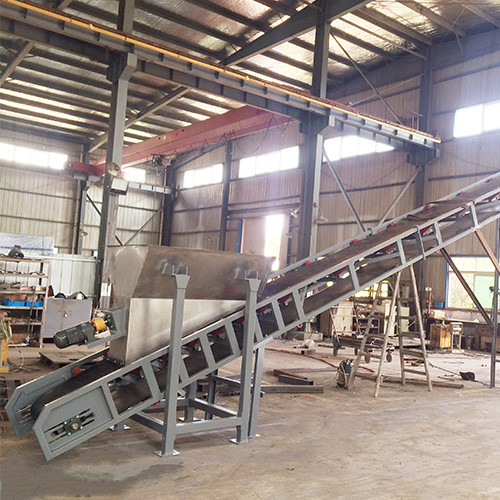

Belt feeding mechanism jumbo/bulk/ton/FIBC bags packing filling bagging machines |
||
|
Item |
DCS-2T/F |
||
|
Application Materials |
Flake,lump,block,aggregation,mixture materials,such as gravel,pebble, stone,manure,organic fertilizer, soil, sawdust,animal feed(big size/ mixture),coal briquette, aluminum sulfate etc |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
500-3000kg/bag or customized needs |
||
|
Precision |
+/-(0.1)% FS |
||
|
Packing Capacity |
10-30 bags/hour or more fast depends on your materials | ||
|
Dimension(L*W*Hmm) |
1840*1840*4500mm, See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-6KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||

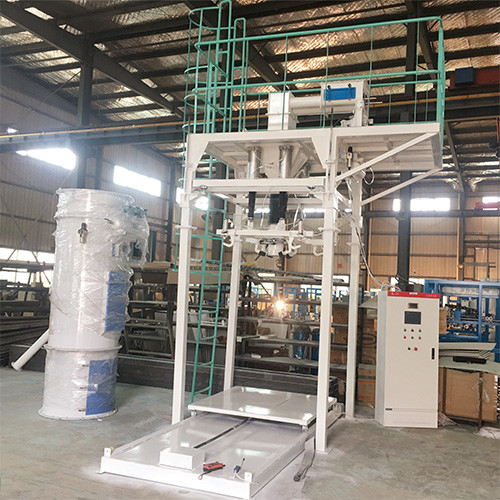

DCS-2T/D belt feeding JUMBO/FIBC/BULK BAGS bagging/filling/packing machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying
|
Control Box+Full touch screen panel |
Four pieces of Load Cell(weighing sensor)+Famous brand load cell, more stable |
|
|
Three-travelling Air Cylinder(gravity feeding)+Control by the PLC system and three-travelling |
Automtic Bag Clamp/Lifting Mechanism+Automatic bag clamp/release device photoelectric sensor switch for start&stop instal 4pcs air cylinder with pneumatic control |
|
|
Air Receiver+storage air from the air compressor Packing & Delivery
|
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-
testing-packaging and transport-after service
