Place of Origin: | Jiangxi, China |
---|---|
Brand Name: | BLU-RAY |
Certification: | CE, CMC, ISO |
Model Number: | DCS-50WF |
Minimum Order Quantity: | 1 Set/Sets |
Price: | $5,000.00 - $10,000.00 / Set |
Packaging Details: | 1, Each set of flour packaging machine will be packed in a big wooden case, then in the container 2, Customized needs available |
Supply Ability: | 100 Set/Sets per Month |
Type: | Packaging Line | Condition: | New |
---|---|---|---|
Application: | Other | Packaging Type: | Bags |
Packaging Material: | Wood | Automatic Grade: | Automatic Or Semi Automatic As You Need |
Driven Type: | ELECTRIC AND PNEUMATIC | Voltage: | 220V/380V/50HZ Or As Your Site |
Power: | 3-6KW | Dimension(L*W*H): | 3000*1100*2500mm, The Size Can Be Customized As You Need |
Weight: | 1000kg | Product Name: | Powder Flour Starches Packaging Machine |
Three Load Cell: | High Weighing Accuracy | Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow |
Control Box: | Full Touch Screen Panel | Automatic Bag Clamp: | Sensor Control |
PLC System: | Easy Operating | Packing Material: | Powder |
Sewing Machine: | Full Automatic | OEM Service: | 15 Years R&D Experience |
Quality Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Port: | Shanghai Or Any Port Of China | ||
High Light: | Semi Automatic Bagging Packaging Line,Black Powder vertical bagging machine,DCS-50WF bulk bagging machine |
Product Name |
Non weighing hopper Screw feeding mechanism packing/packaging/bagging/filling machine |
||
Item |
DCS-50WF |
||
Application Materials |
Powder materials such as flour, starches, lime powder, cement, fertilizer,silica sand powder,nitrate of potash, ammonium sulfate etc |
||
Display Resolution |
5g, 10g |
||
Weighing Range |
10-50kg/bag or customized needs |
||
Precision |
+/-(0.1-0.2)% FS |
||
Packing Capacity |
120-280bags/hour or more fast depends on your materials character |
||
Dimension(L*W*Hmm) |
See detailed drawing, the size can be customized according to your site |
||
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
Air Source |
0.5-0.7 Mpa |
||
Power |
3KW-6KW |
||
Working Temperature |
-10~40 ℃ |
||
Relative Humidity |
≤90% RH(Non-condensing) |
Description |
Remarks |
Packing scale framework |
Floor structure, high quality carbon steel |
Feeding mechanism |
Screw feeding type, three grade feeding speed with fast-medium-slow |
Weighing sensor |
Installation 3pcs(DCS-50WF,DCS-50F)/6pcs(DCS-50SF) load cell, famous brand |
Control system |
PLC system, full automatic, data record & print function |
Control box |
Color touch screen, English/Chinese interface |
Cylinder |
AirTAC brand, big force, high quality, more stable, long service life |
Solenoid valve |
AirTAC brand, with indicator |
Electric component |
Schneider brand, short circuit protection function |
Pneumatic component |
AirTAC brand, stable and reliable |
Motor |
Frequency conversion motor with smooth working |
Automatic sewing machine |
Photoelectric induction control, automatic thread knife cut, date record & print |
Belt type bag conveyor |
Speed governing design |

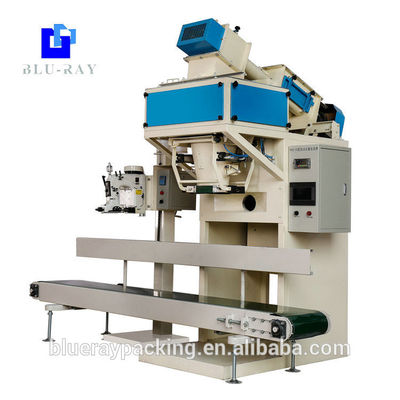

DCS-50WF 120-180bag/hour DUAL AUGER FEEDING packing/packaging/bagging/filling machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
