Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | Blu-ray |
| Certification: | CMC CE |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $500.00 - $4,000.00 / Set |
| Packaging Details: | Wooden Box or customized, box size 3*1*1m, g.w 500kg |
| Supply Ability: | 100 Set/Sets per Month bag sewing machine |
| Application: | Bag Sewing With Bagging Machine | Packaging Type: | Woven Bags, Plastic Bags, Kraft Bags, Sacks Etc |
|---|---|---|---|
| Dimension(L*W*H): | Depends | Product Name: | Automatic Bag Sewing Machine |
| Automatic Bag Top Folding Device: | Available | Function: | Bag Sealing/closed |
| Photoelectric Sensor Switch: | Full Automatic | Thread Knife Cut: | Automatic |
| Thread: | A3*3 Double Thread Chain | Height Adjustable: | Yes |
| Production Data Record: | Yes | Sewing Speed: | 500-1000bags/hour |
| Automatic Bag Conveyor: | 2m/3m/4meters Opitional | Type: | SEALING MACHINE |
| Condition: | New | Automatic Grade: | Automatic |
| Driven Type: | Electric | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Packaging Material: | Wooden Box | Voltage: | 220v/380v/50hz |
| Power: | 1.1kw | Weight: | 300kg |
| Port: | Shanghai Or Any Port In China | ||
| High Light: | Paper Bag Folding Closer Sewing Machine,500bags/Hour Closer Sewing Machine,CMC Closer Sewing Machine |
||

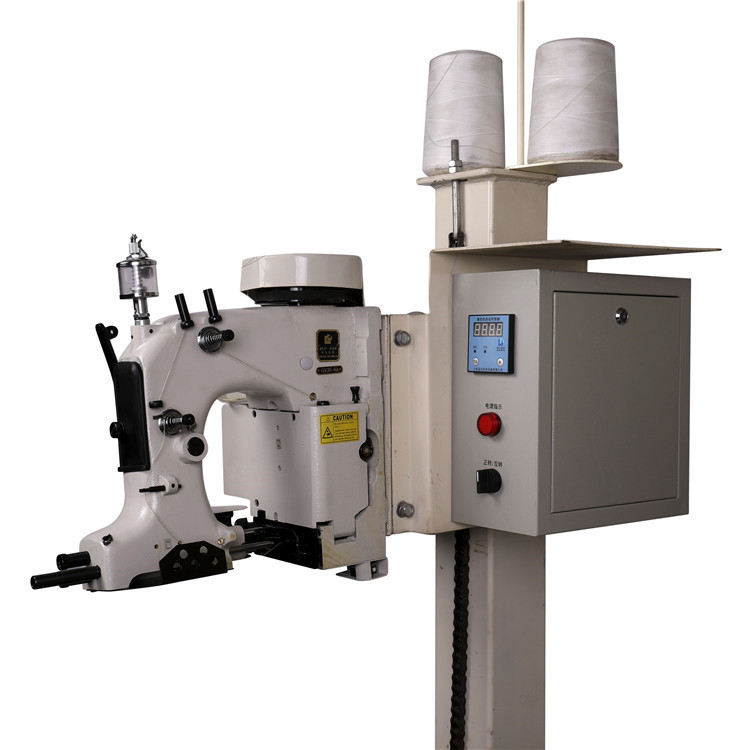

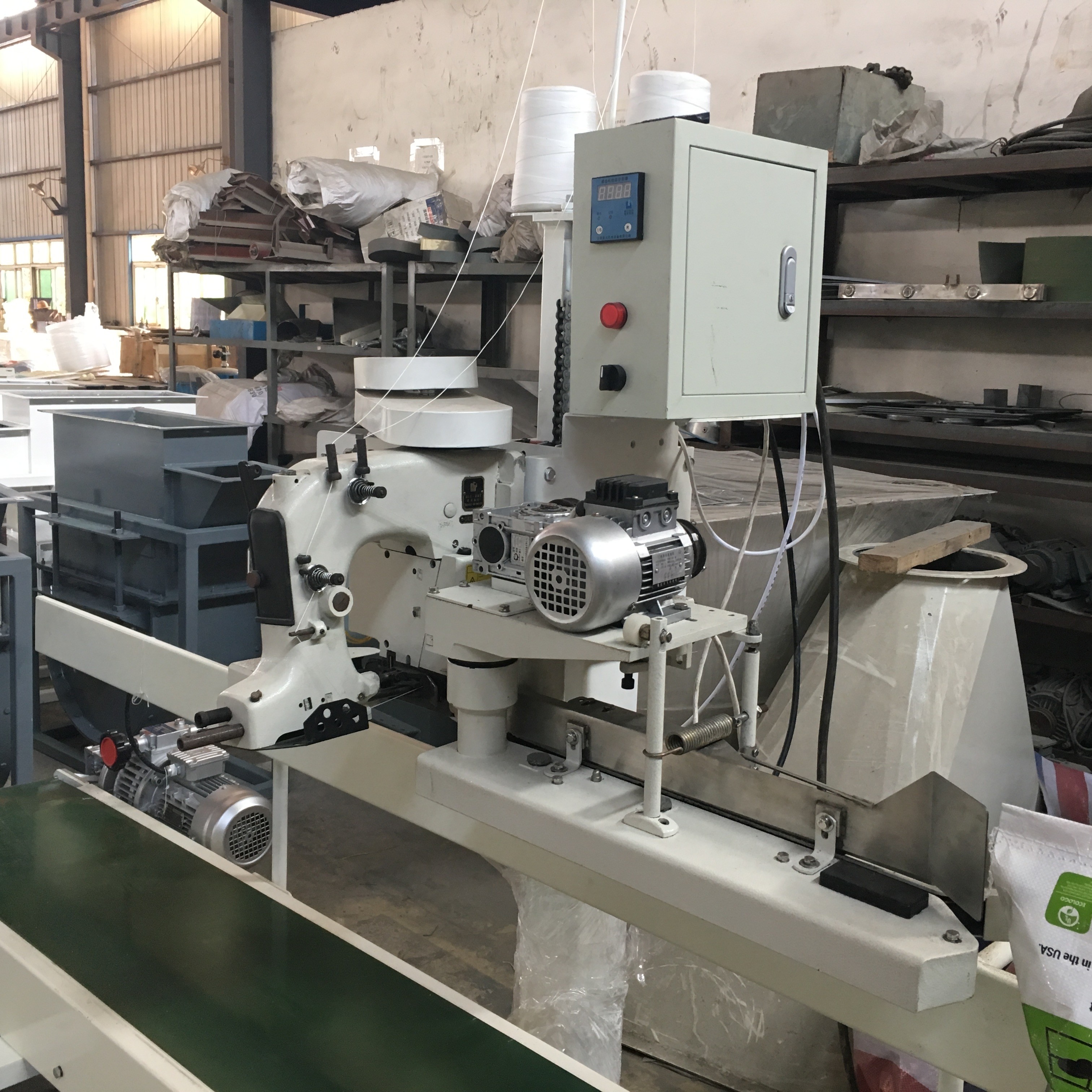

1, Product Name: gk35 6a automatic kraft paper bag folding and closer sewing machine
2, Item: GK355-6A
3,Technical parameters
- Applicable: woven bags, kraft bags,paper-plastic compound bags, sacks
- Max. Sewing Speed: 2000rpm
- Working Speed: 1800rpm
- Max. Thickness of Material: 8mm
- Range of Stitch Width: 6.5~11mm
- Thread Track: 401401 Double-Thread Chain
- Thread Spec.: A3*3 double thread
- Lifting height: 11~16mm
- Needle Type: 80800*200#-250#
- Thread chain cutter: Electro-Pneumatically Operated Type
- Motor Type: Braking Motor
- Motor power: 370W
Our item GK35-6A sewing machine is full automatic, it's started/stop by a photoelectric sensor, automatic thread knife cut with single needle double thread chain, with the function of production data dispaly and
record. It's suitable for bag closed(such aswoven bags,kraft bags,paper-plastic compound bags,sacks etcEngineering Case
We can provide all equipments of packaging line, including the batching system, packing machines(semi-automatic/full automatic), hopper, conveyor(2/3/4/5/8 meters etc), various item of elevator(belt/screw/bucket elevator etc),automatic bag stacking/palletizer machine, air compressor, sewing/heat sealing machine, thread for sewing and so on.
We have made many cases of packaging solution for feed, fertilizer, flour, starches, grain, soil, stone, manure, chemical,
mining, coal, cement, lime powder etc industries.
Q1: How could I choose the right packing machine?
A: We have various item of packing machine to suit for pack different materials(products), just let me know your
product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are availbale, we have more than 10 person engineers team and R&D team.
Q2: What's service you can provide if we buy your machine?
A: 1, One year quality guaranteed, during this guarantee period, no matter what's kind of parts damaged, we will provide
free change for you. All equipment for more than a year warranty, exchange of damaged parts, only charge a cost of
spare parts.
2, We will provide you the guide service on the operation of the machine.
3, If required, we will dispatch technician to your country for installation guide, commissioning& adjusting the machine and training the workers on conditon that you need affords all cost from China to your company including food,
accommodation, transportation etc and extra USD80 per day.
Q3: What's your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you
pay the balance.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q5: How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A: 1, We keep good quality and competitive price to ensure our customers benefit
2, We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
