Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BLU-RAY |
| Certification: | CE, CMC, ISO |
| Model Number: | DCS-50WF |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Packaging Details: | 1, Each set of flour packaging machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month |
| Type: | Packaging Line | Packaging Type: | Bags |
|---|---|---|---|
| Automatic Grade: | Automatic Or Semi Automatic As You Need | Driven Type: | ELECTRIC AND PNEUMATIC |
| Voltage: | 220V/380V/50HZ Or As Your Site | Power: | 3-6KW |
| Dimension(L*W*H): | 3000*1100*2500mm, The Size Can Be Customized As You Need | Weight: | 1000kg |
| Product Name: | Powder Flour Starches Packaging Machine | Three Load Cell: | High Weighing Accuracy |
| Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow | Control Box: | Full Touch Screen Panel |
| Automatic Bag Clamp: | Sensor Control | PLC System: | Easy Operating |
| Packing Material: | Powder | Sewing Machine: | Full Automatic |
| OEM Service: | 15 Years R&D Experience | Quality Warranty: | One Year |
| High Light: | Hydrated Lime Powder Filling Machine,6KW Powder Filling Machine,CE Powder Filling Machine |
||
Hydrate lime powder filling machine with competitive price
After-sales
Engineers available to service machinery overseas
|
Product Name |
Non weighing hopper Screw feeding mechanism packing/packaging/bagging/filling machine |
||
|
Item |
DCS-50WF |
||
|
Application Materials |
Powder materials such as flour, starches, lime powder, cement, fertilizer,silica sand powder,nitrate of potash, ammonium sulfate etc |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
10-50kg/bag or customized needs |
||
|
Precision |
+/-(0.1-0.2)% FS |
||
|
Packing Capacity |
120-280bags/hour or more fast depends on your materials character |
||
|
Dimension(L*W*Hmm) |
See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-6KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||
|
Description |
Remarks |
|
Packing scale framework |
Floor structure, high quality carbon steel |
|
Feeding mechanism |
Screw feeding type, three grade feeding speed with fast-medium-slow |
|
Weighing sensor |
Installation 3pcs(DCS-50WF,DCS-50F)/6pcs(DCS-50SF) load cell, famous brand |
|
Control system |
PLC system, full automatic, data record & print function |
|
Control box |
Color touch screen, English/Chinese interface |
|
Cylinder |
AirTAC brand, big force, high quality, more stable, long service life |
|
Solenoid valve |
AirTAC brand, with indicator |
|
Electric component |
Schneider brand, short circuit protection function |
|
Pneumatic component |
AirTAC brand, stable and reliable |
|
Motor |
Frequency conversion motor with smooth working |
|
Automatic sewing machine |
Photoelectric induction control, automatic thread knife cut, date record & print |
|
Belt type bag conveyor |
Speed governing design |

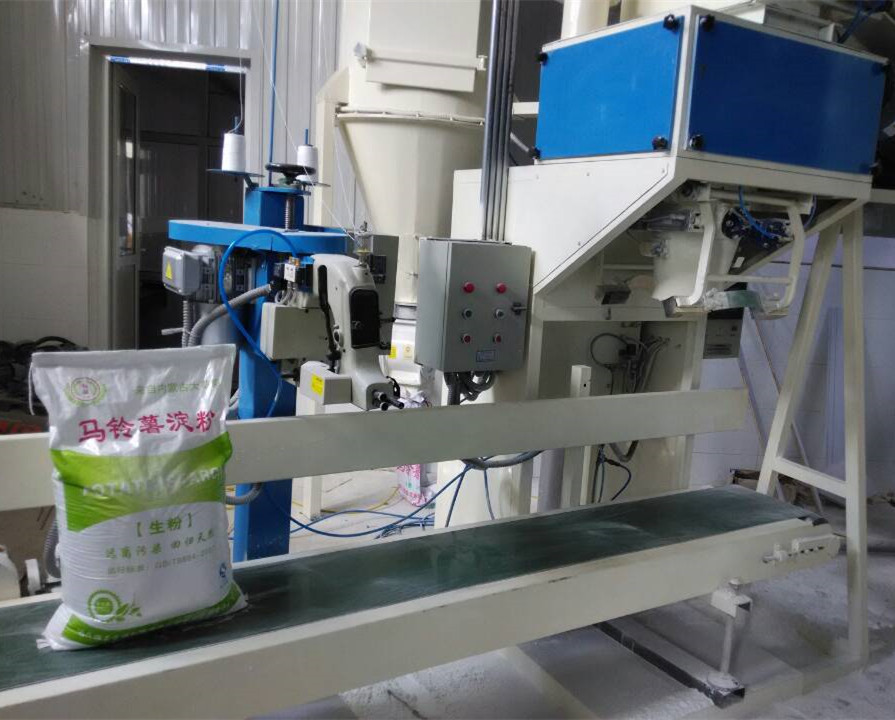

DCS-50WF 120-180bag/hour DUAL AUGER FEEDING packing/packaging/bagging/filling machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
