Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BlueRay |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1.0 Set/Sets |
| Price: | $8,000.00 - $15,000.00 / Set |
| Packaging Details: | 1, Each set of fertilizer packing machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month fertilizer packing machine |
| Warranty: | 1 YEAR | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Construction Works , Energy & Mining |
|---|---|---|---|
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Thailand |
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 YEAR | Core Components: | PLC |
| Application: | Other | Packaging Type: | Other, Bags, Barrel |
| Dimension(L*W*H): | 4000*1200*3700mm | After-sales Service Provided: | Online Support, Engineers Available To Service Machinery Overseas |
| Key Selling Points: | High-accuracy | Product Name: | Fertilizer Packing Machine |
| Three Load Cell: | High Weighing Accuracy | Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow |
| Control Box: | Full Touch Screen Panel | Automatic Bag Clamp: | Sensor Control |
| PLC System: | Easy Operating | Packing Material: | Granular Or Good Flow Powder |
| Sewing Machine: | Full Automatic | OEM Service: | 15 Years R&D Experience |
| Type: | Other | Condition: | New |
| Packaging Material: | Wood, Other | Automatic Grade: | Semi-automatic |
| Driven Type: | Pneumatic | Voltage: | 220V/380V/50HZ |
| Power: | 3KW | Weight: | 1500KG |
| Port: | Shanghai Or Any Port Of China | ||
| High Light: | SS Fertilizer Bagging Machine,600bags Hourly Fertilizer Bagging Machine,600bags Hourly SS Fertilizer Bagging |
||
|
Product Name |
Semi automatic high speed 500-600bags hourly stainless steel fertilizer packing machine |
||
|
Item |
DCS-50WL |
DCS-50L |
DCS-50SK |
|
Application Materials |
Granular materials such as plastic particles,feed, fertilizer( urea etc), grain,sugar, bean, rice |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
10-50kg/bag or customized needs |
||
|
Precision |
+/-(0.1-0.2)% FS |
||
|
Packing Capacity |
240-360bags/hour or more fast |
360-480 bags/hour or more fast |
500-600 bags/hour or more fast |
|
Dimension(L*W*Hmm) |
See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-4KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||
|
Description |
Remarks |
|
Packing scale framework |
Floor structure, high quality carbon steel |
|
Feeding mechanism |
Gravity feeding type, three grade feeding speed with fast-medium-slow |
|
Weighing sensor |
Installation 3pcs(DCS-50WL,DCS-50L)/6pcs(DCS-50SK) load cell, famous brand |
|
Control system |
PLC system, full automatic, data record & print function |
|
Control box |
Color touch screen, English/Chinese interface |
|
Cylinder |
AirTAC brand, big force, high quality, more stable, long service life |
|
Solenoid valve |
AirTAC brand, with indicator |
|
Electric component |
Schneider brand, short circuit protection function |
|
Pneumatic component |
AirTAC brand, stable and reliable |
|
Motor |
Frequency conversion motor with smooth working |
|
Automatic sewing machine |
Photoelectric induction control, automatic thread knife cut, date record & print |
|
Belt type bag conveyor |
Speed governing design |

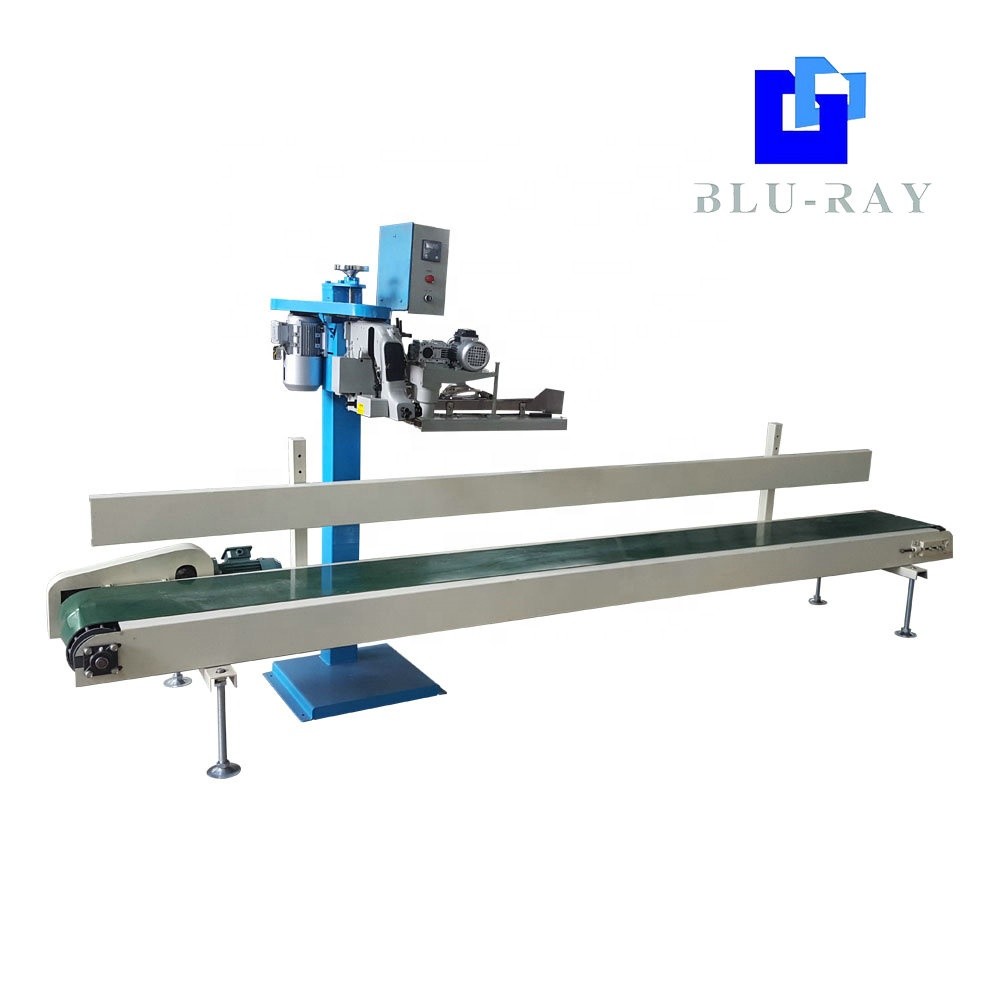

DCS-50WL 240-360bag/hour GRAVITY FEEDIN packing/packaging/bagging/filling machine picture

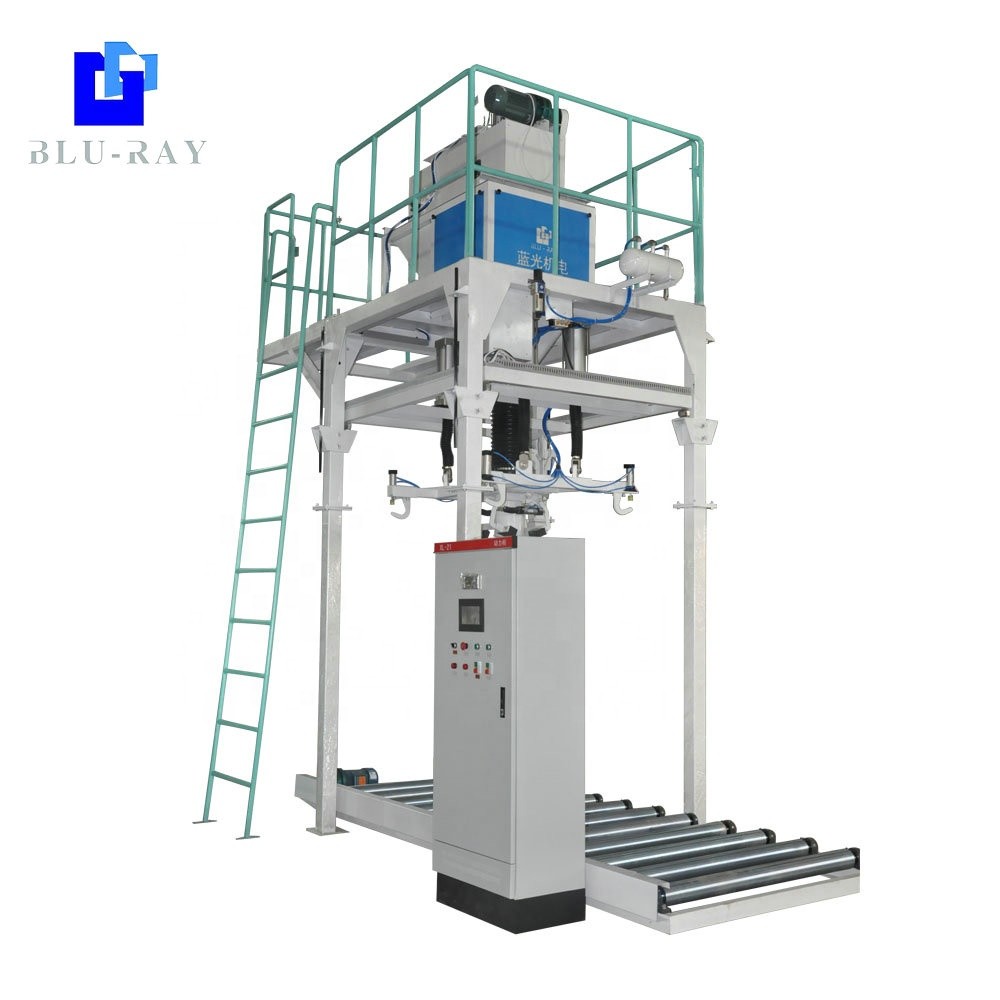

DCS-50L 360-480bags/hour GRAVITY FEEDING packing/packaging/bagging/filling machine picture

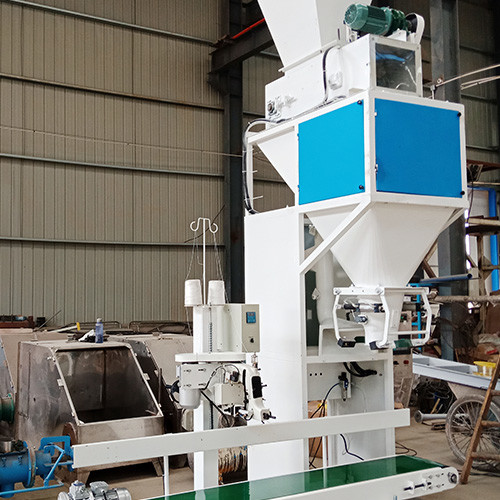

DCS-50SK 500-600bag/hour GRAVITY FEEDING packing/packaging/bagging/filling machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-
testing-packaging and transport-after service
Our packing machines have exported to many countries, such as USA, Australian, Korea, Philippines, Malaysia,Oman, Mongolia, Iraq, Iran, Bulgaria etc. They all choose our packing machine, sewing machine and other equioments.
We can provide all equipments of packaging line, including the batching system, packing machines
(semi-automatic/full automatic), hopper, conveyor(2/3/4/5/8 meters etc), various item of elevator(belt/screw/bucket elevator etc),automatic bag stacking/palletizer machine, air compressor, sewing/heat sealing machine, thread for sewing and so on.
We have made many cases of packaging solution for feed, fertilizer, flour, starches, grain, soil, stone, manure, chemical,mining, coal, cement, lime powder etc industries.
Q1: How could I choose the right packing machine?
A: We have various item of packing machine to suit for pack different materials(products), just let me know your
product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are availbale, we have more than 10 person engineers team and R&D team.
Q2: What's service you can provide if we buy your machine?
A: 1, One year quality guaranteed, during this guarantee period, no matter what’s kind of parts damaged, we will provide
free change for you. All equipment for more than a year warranty, exchange of damaged parts, only charge a cost of
spare parts.
2, We will provide you the guide service on the operation of the machine.
3, If required, we will dispatch technician to your country for installation guide, commissioning& adjusting the machine and training the workers on conditon that you need affords all cost from China to your company including food,
accommodation, transportation etc and extra USD80 per day.
Q3: What's your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you
pay the balance.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q5: How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A: 1, We keep good quality and competitive price to ensure our customers benefit
2, We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
