Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BlueRay |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Packaging Details: | 1. The normal package is wooden case 2. If any special requirements, we will packed it as requested |
| Supply Ability: | 100 Set/Sets per Month poultry feed filling and packing machine |
| Application: | Fertilizer Feed | Packaging Type: | Open Mouth Bag, Bags |
|---|---|---|---|
| Dimension(L*W*H): | 3000*1100*3100mm | Name: | New Type Woven Bag Fertilizer Feed Automatic Bagging Machine |
| Material: | High Weighing Accuracy | Weighing System: | Feeding Speed With Fast-midium-slow |
| Accuracy: | Full Touch Screen Panel | Packing Range: | Sensor Control |
| Packing Speed: | Easy Operating | Warranty: | Granular Or Good Flow Powder |
| OEM: | Full Automatic | Color: | 15 Years R&D Experience |
| Port: | Shanghai Or Any Port In China | Condition: | New |
| Packaging Material: | Wood, Exported Wooden Box | Automatic Grade: | Semi-automatic |
| Driven Type: | Pneumatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Voltage: | AC220V/380V/50HZ | Power: | 3KW |
| Weight: | 1000kg | ||
| High Light: | Fertilizer Automatic Weighing And Bagging Machine,3KW Automatic Weighing And Bagging Machine,3KW Fertilizer Weighing And Bagging Machine |
||

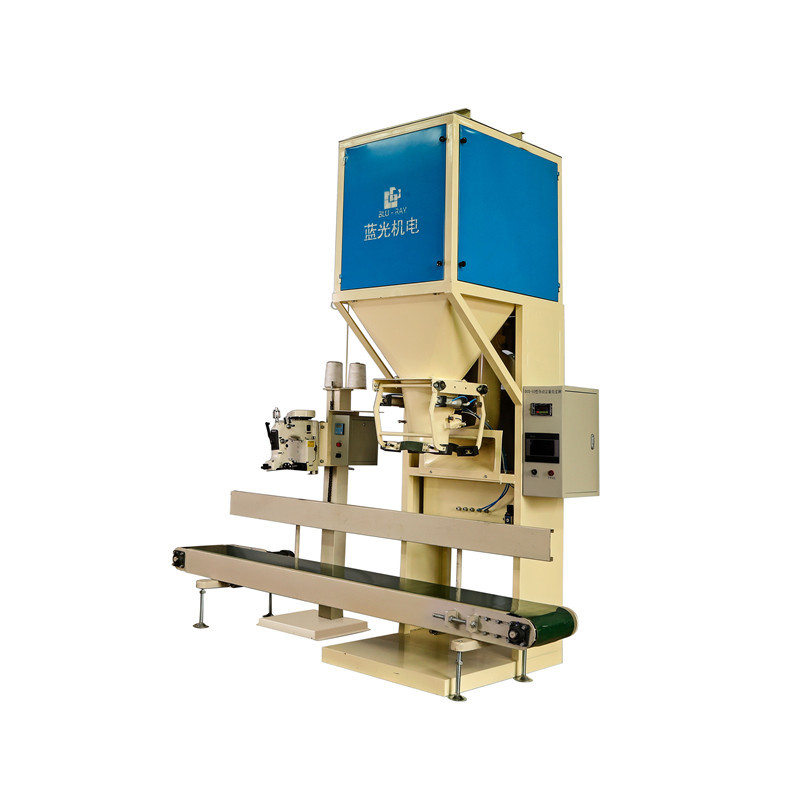

1, Product Name: New type woven bag fertilizer feed automatic bagging machine
2, Item: DCS-50L
|
Application materials
|
small size granular or powder with good flow
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
5-50kg/bag or customized needs
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
360-480 bags/hour
|
||
|
Dimention(L*W*Hmm)
|
3000*1100*3200mm, the size can be customized according to your site
|
||
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
3KW
|
||
|
Working Temperature
|
-10~40 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
Gravity feeding type packing machine suit for pack small size granular or powder with good flow, such as plastic particles, feed, fertilizer( urea etc), grain, sugar, bean, rice etc.
This bagging machine is especially designed for pack materials(products) into open mouth bags, such as plastic woven bags, kraft bags,paper-plastic compound bags, sacks, barrel etc
Automatic filling - automatic weighing - manually bag placing - automatic bag clamped - materials automatic discharge - automatic bag loose - automatic conveying - automatic bag closed by sewing/heat sealing
|
|
|
|
|
|
Control Box+Full touch screen panel |
Three pieces of Load Cell(weighing sensor)+Famous brand load cell, more stable |
Dual Screw Feeding Mechanism+Dual screw design(coarse screw+fine screw) |
Automtic Bag Clamp/Loose Mechanism+Photoelectric sensor switch |
Dust Air Outlet+All of our packing machine will install air outlet |
Automatic Sewing Machine+Automatic bag top folding device(opitional) |
All equipments will package in the
wooden case and fixed by the steel
then in the cantainer
We will transport the machine to
the port by the truck
All machines will in container then ship to the sea port of your country
-15 years professional manufacturer of packing machines, sewing/heat sealing machine, automatic palletizer machine, elevator/conveyor etc
-More than 10 person engineers team, OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
