Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BLU-RAY |
| Certification: | CE,ISO,MC |
| Model Number: | DCS-50SF |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Packaging Details: | 1, Each set of powder packing machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month |
| Condition: | New | Packaging Type: | Bags |
|---|---|---|---|
| Packaging Material: | Wood | Automatic Grade: | Semi-automatic |
| Driven Type: | Electric And Pneumatic | Voltage: | 220V/380V/50HZ Or Customized |
| Power: | 3-6KW | Weight: | 1000kg |
| Dimension(L*W*H): | 4000*1100*3700mm, This Size Can Be Customized As Your Site Need | Product Name: | Powder Packing Machine |
| Three Load Cell: | 6 Load Cell High Weighing Accuracy | Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow |
| Control Box: | Full Touch Screen Panel | Automatic Bag Clamp: | Sensor Control |
| PLC System: | Easy Operating | Packing Material: | Powder |
| Sewing Machine: | Full Automatic | OEM Service: | 15 Years R&D Experience |
| Quality Warranty: | One Year | Port: | Shanghai Or Any Port Of China |
| High Light: | Strach Bean Powder Packaging Machine,25kg Flour Powder Packaging Machine |
||
|
Product Name |
Dual(double) weighing hopper Screw feeding mechanism packing/packaging/bagging/filling machine |
||
|
Item |
DCS-50SF |
||
|
Application Materials |
Powder materials such as flour, starches, lime powder, cement, fertilizer,silica sand powder,nitrate of potash, ammonium sulfate etc |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
10-50kg/bag or customized needs |
||
|
Precision |
+/-(0.1-0.2)% FS |
||
|
Packing Capacity |
400-500bags/hour or more fast depends on your materials |
||
|
Dimension(L*W*Hmm) |
See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-6KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||
|
Description |
Remarks |
|
Packing scale framework |
Floor structure, high quality carbon steel |
|
Feeding mechanism |
Screw feeding type, three grade feeding speed with fast-medium-slow |
|
Weighing sensor |
Installation 3pcs(DCS-50WF,DCS-50F)/6pcs(DCS-50SF) load cell, famous brand |
|
Control system |
PLC system, full automatic, data record & print function |
|
Control box |
Color touch screen, English/Chinese interface |
|
Cylinder |
AirTAC brand, big force, high quality, more stable, long service life |
|
Solenoid valve |
AirTAC brand, with indicator |
|
Electric component |
Schneider brand, short circuit protection function |
|
Pneumatic component |
AirTAC brand, stable and reliable |
|
Motor |
Frequency conversion motor with smooth working |
|
Automatic sewing machine |
Photoelectric induction control, automatic thread knife cut, date record & print |
|
Belt type bag conveyor |
Speed governing design |

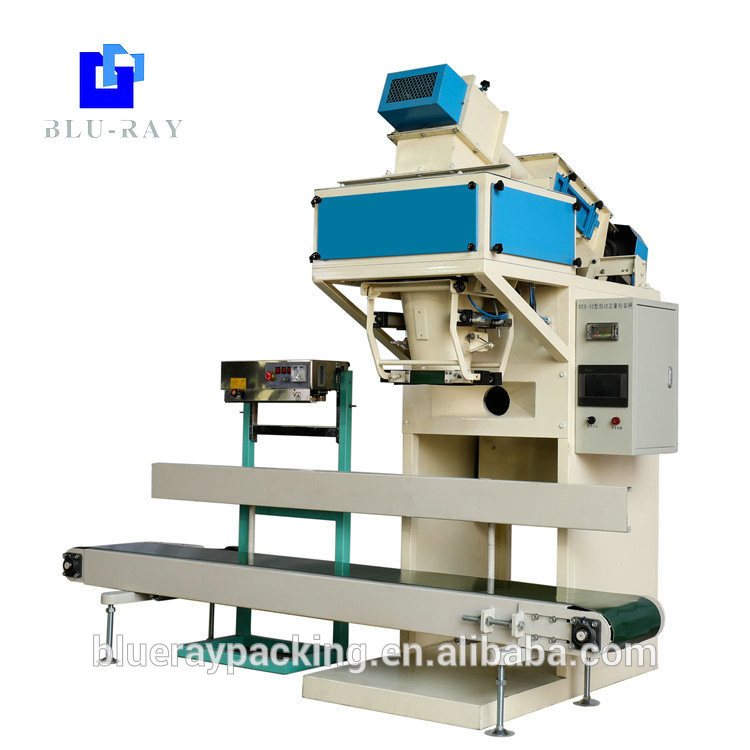

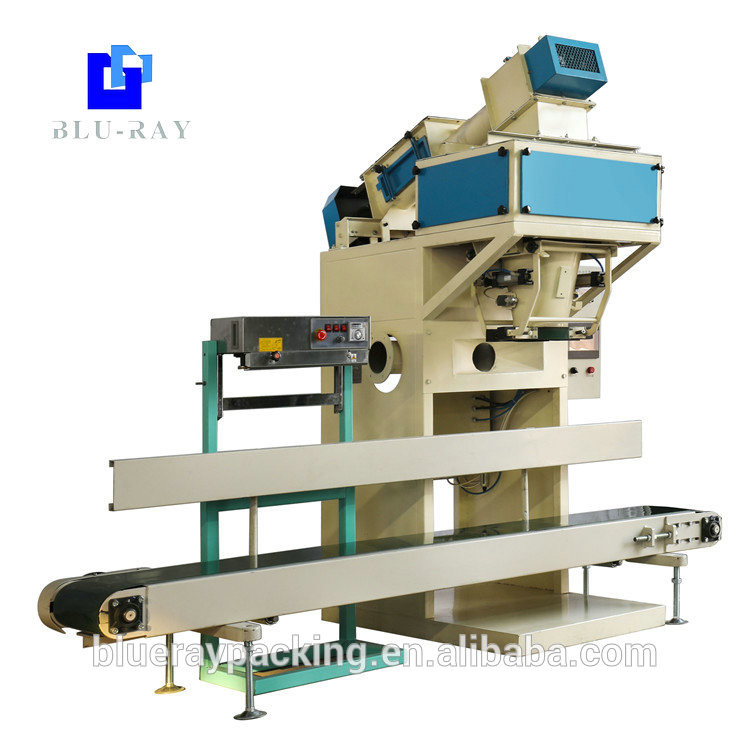

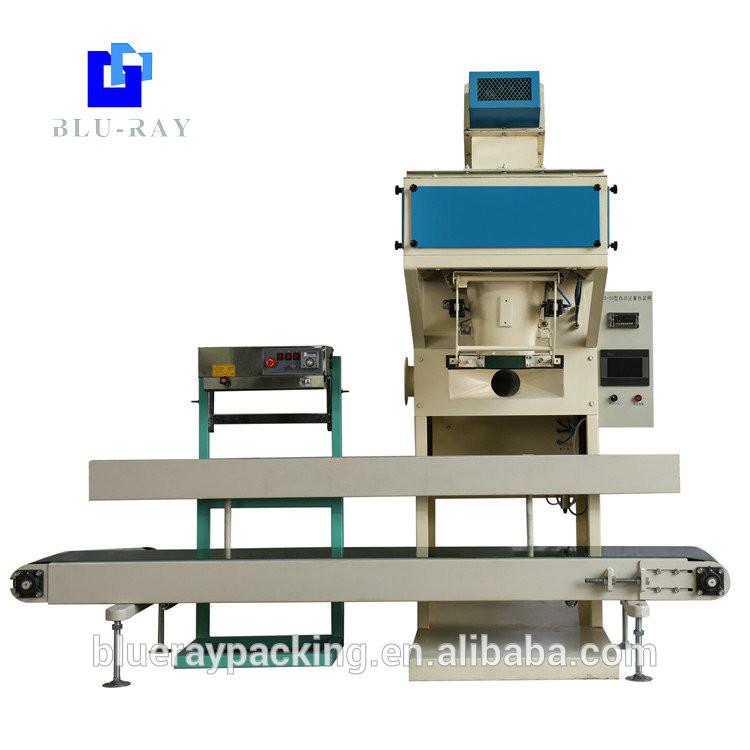

DCS-50SF 500-600bag/hour DUAL AUGER FEEDING packing/packaging/bagging/filling machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-
testing-packaging and transport-after service
We have attend many trade shows in China mainland and overseas, such as Canton Fair, HK Source Fair, IPPE, China Feed Expo etc.
Our packing machines have exported to many countries, such as USA, Australian, Korea, Philippines, Malaysia,Oman, Mongolia, Iraq, Iran, Bulgaria etc. They all choose our packing machine, sewing machine and other equioments.
We can provide all equipments of packaging line, including the batching system, packing machines
(semi-automatic/full automatic), hopper, conveyor(2/3/4/5/8 meters etc), various item of elevator(belt/screw/bucket elevator etc),automatic bag stacking/palletizer machine, air compressor, sewing/heat sealing machine, thread for sewing and so on.
We have made many cases of packaging solution for feed, fertilizer, flour, starches, grain, soil, stone, manure, chemical,mining, coal, cement, lime powder etc industries.
Q1: How could I choose the right packing machine?
A: We have various item of packing machine to suit for pack different materials(products), just let me know your
product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are availbale, we have more than 10 person engineers team and R&D team.
Q2: What's service you can provide if we buy your machine?
A: 1, One year quality guaranteed, during this guarantee period, no matter what’s kind of parts damaged, we will provide
free change for you. All equipment for more than a year warranty, exchange of damaged parts, only charge a cost of
spare parts.
2, We will provide you the guide service on the operation of the machine.
3, If required, we will dispatch technician to your country for installation guide, commissioning& adjusting the machine and training the workers on conditon that you need affords all cost from China to your company including food,
accommodation, transportation etc and extra USD80 per day.
Q3: What's your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you
pay the balance.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q5: How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time depends on the
items and the quantity of your order.
Q6: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A: 1, We keep good quality and competitive price to ensure our customers benefit
2, We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
