Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BlueRay |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $8,000.00 - $15,000.00 / Set |
| Packaging Details: | 1, inner package stretch film, out package standard export wooden box, box size: 4*2*2meter, g.w: around 1500kg 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month animal feed packing machine |
| Type: | Other | Condition: | New |
|---|---|---|---|
| Application: | Granule Materials Such As Animal Feed, Fertilizer, Grain, Rice, Beans | Packaging Type: | Bags, Barrel, Open Mouth Bags, Woven Bags, Kraft Bags, Paper Bags, Sacks |
| Packaging Material: | Inner Stretch Film, Out Wooden Box | Automatic Grade: | Semi-automatic |
| Driven Type: | Pneumatic | Voltage: | 220V/380V/50HZ |
| Power: | 3KW | Weight: | 1500KG |
| Dimension(L*W*H): | 4000*1200*3700mm | Product Name: | Animal Feed Auto Bagging Machine |
| Three Load Cell: | High Weighing Accuracy | Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow |
| Control Box: | Full Touch Screen Panel | Automatic Bag Clamp: | Sensor Control |
| PLC System: | Easy Operating | Packing Material: | Granular Or Good Flow Powder |
| Sewing Machine: | Full Automatic | OEM Service: | 15 Years R&D Experience |
| Quality Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shanghai Or Any Port Of China | ||
| High Light: | 3KW Animal Feed Packing Machine,50kg Animal Feed Packing Machine,40kg Animal Feed Packing Machine |
||
25kg 40kg 50kg animal feed auto bagging machine with high speed 600-800bags/hour
Technical parameter
| Product name | auto animal feed bagging machine | ||
| Model | DCS-50WL | DCS-50L | DCS-50SK |
| Aplicable | Granule materials such as animal feed, fertilizer, grain, rice, nuts, plastic particles etc | ||
| Weighing range | 5kg-70kg or customized | ||
| Feeding mechanism | Gravity feeder | ||
| Precision | ±50-100g | ||
| Packing speed | 180-240bags/hour | 360-480bags/hour | 500-600bags/hour |
| Voltage | Single phase AC220V, three phase 380V, 50Hz, or customize | ||
| Power | 1.1kw | 1.1kw | 1.1kw |
| Dimension | 3000*1100*2100mm | 3000*1100*3100mm | 4000*1200*3600mm |
| Working environment | -20℃-50℃ | ||
Aplication
DCS series gravity feeder packing machines are used to weighing and packing granules materials such as animal feed, granule fertilizer, urea, seed, rice, sugar, beans, corn, peanut, wheat,PP, PE, plastic particles, almond, nuts, silica sand etc. The weight from 10kg-70kg are available.
The bag can be closed by heat sealing for lining/plastic bags and sewing(thread stitching) for woven bags, paper bags, kraft bags, sacks etc.
Bag type:
Our packing machine can working with the automatic sewing machine closed the woven bags, kraft bags, paper bags or sacks by thread stitching and automatic thread cut.
Or the heat sealing machine for lining/ plastic bags sealing.
Futures
1, Gravity feeder with three stroke air cylinder, provide three grade feeding speed with fast feeding-medium feeding-slow feeding, more fast, more high precision
2, Installation 3pcs load cell, each load cell max weight 200kg, IP67 grade, high weighing accuracy, working more stable
3, Dual control system, the CHIMEI weighing instrument and PLC control system
4, Color touch screen HMI, easy operation
5, PLC system operation by 10" touch screen
6, Installation 2pcs of proximity switch and 2pcs cylinder, bag clamp more tighter, more safe
7, Automatic bag sewing and sewing conveyor speed adjustable
8, Parts of famous brand, such as Delta, Schneider, CHNT, AirTAC
TOUCH SCREEN WITH PLC SYSTEM AUTOMAITC BAG CLAMP/RELEASE
PLC SYSTEM,10" HMI, COLOR TOUCH SREEN PANEL INSTALL 3PCS LOAD CELL MAX WEIGHT 200KG/PC
Detailed parts of the packing machine
Our packaging machine use the PLC system of 10" full color touch screen panel, dual English/Chinese interface.
The machine installation 3pcs of high precision load cell provide high weighing accuracy, also the bag clamping
device installation 2pcs of cylinder and 2pcs of sensor switch, bag clamped more tighter, bag giving more safe.

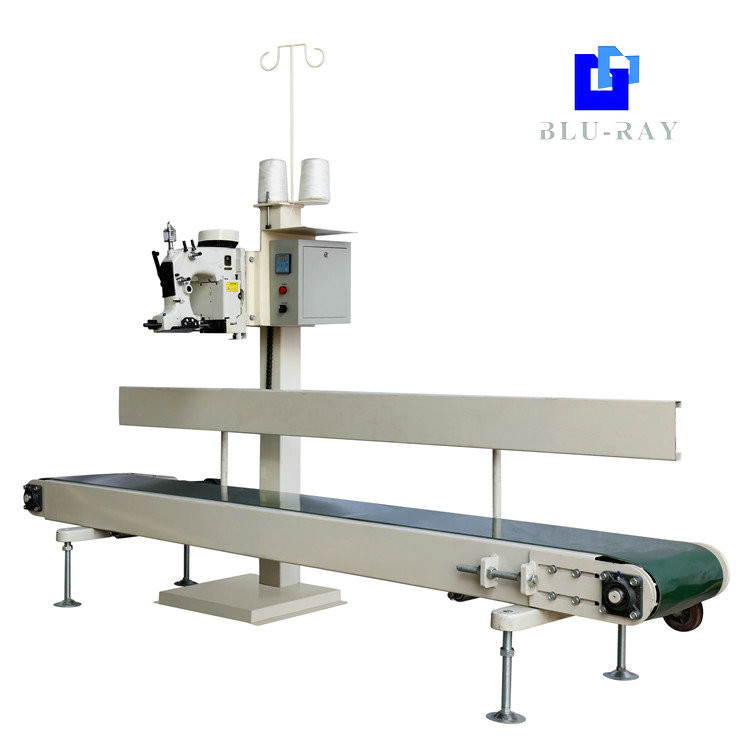

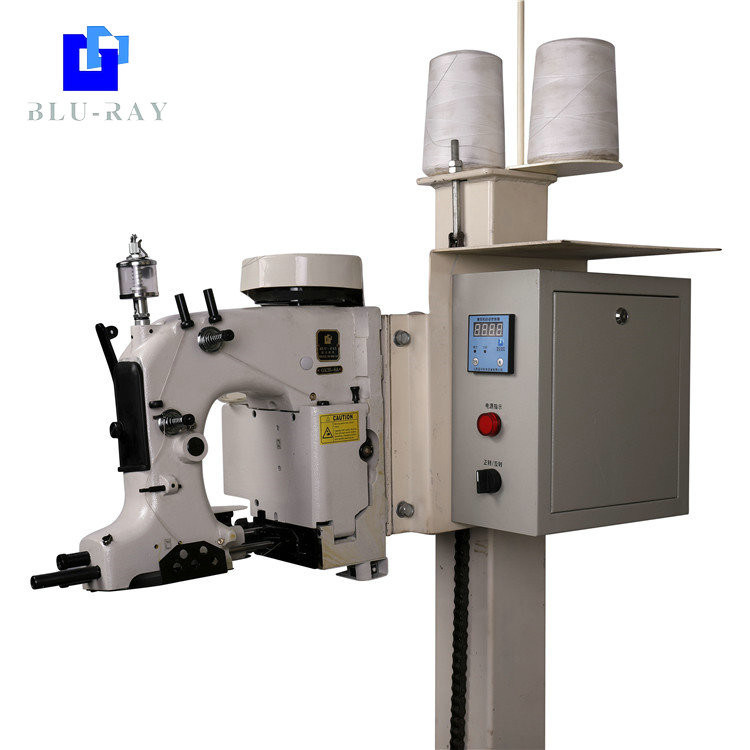

The bagging machine working with the automatic bag sewing machine with automatic start/off and single needle
double thread automatic cutter, the sewing data can be display and record.

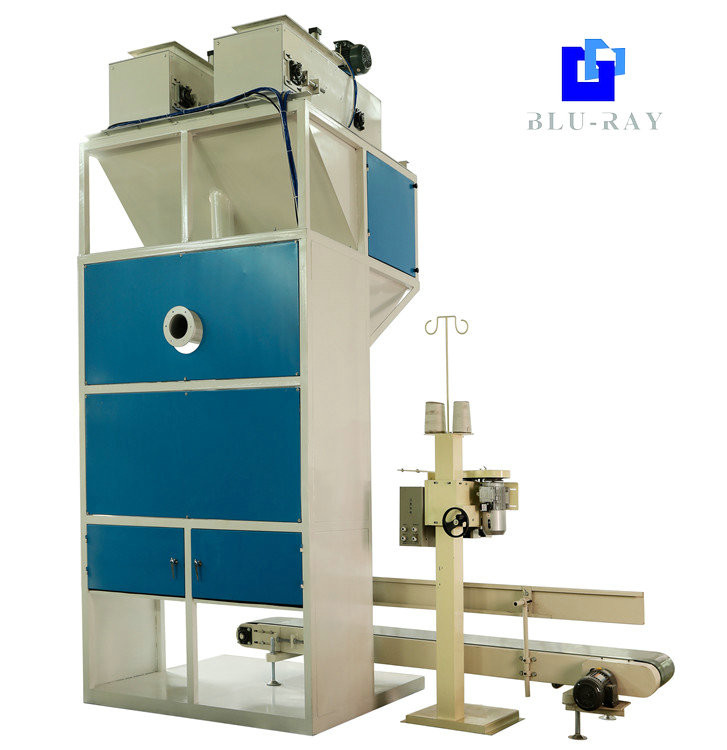

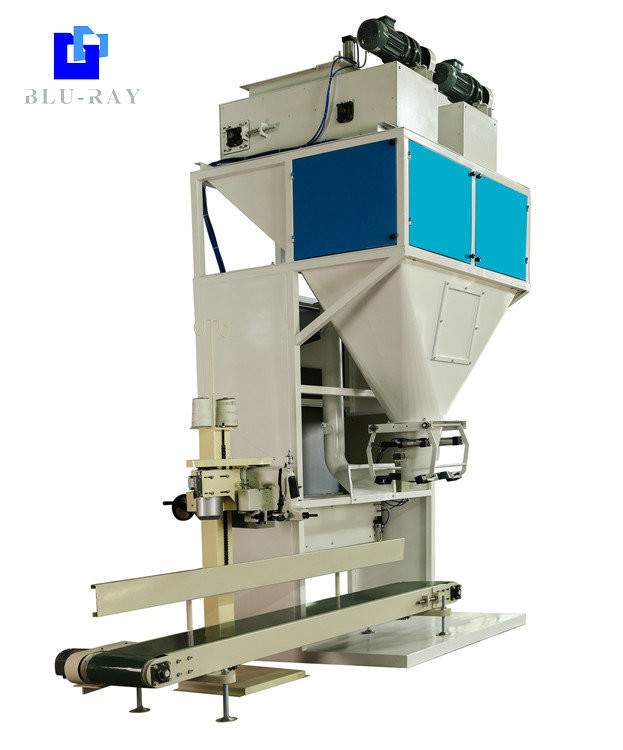

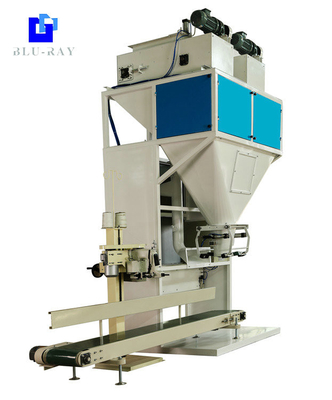

Packing Machine Structure & Working Process
The materials will through the feeding parts(connect hopper) into the gravity feeder then into the weighing hopper,
the weighing hopper installation 3pcs load cell to weighing, manual giving the bag to the packing machine bag clamp
device and touch the sensor, the bag will automatic clamped, the finished weighing materials discharge into the bag,
bag release and on conveyor to the sewing machine for bag closed by thread stitching.
Packing & Shipping
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
Parts Supplier:
Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC, HMI(color touch screen panel) use the WEINVIEW/ Delta, the electric element we use the Schneider/CHNT,
the load cell we installation 3pcs KELI load cell(max weight 200kg/pc, IP67) or Mettler Toledo as you need.
The bagging machine can stable working more than 5 years.
Company Information
We are the group company that founded in 2004, we have two factory Jiangxi Leader High-Tech LLC and Jiangxi Blueray
Mechanical and Electric Equipment Co., Ltd.
The factory located at Nanchang city Jiangxi province of China, specialized in the R&D, manufacturing and marketing of
semi auto/full auto packing machines, jumbo bag packing machine, automatic bag palletizer, sewing machine, conveyor,
bucket elevator, batching system and complet equipment of animal feed etc.
Our company have 100000 square meters working shop, more than 150 workers and over 50 people engineers & sales team 24hours
provide you high quality machinery and professional export/import service. After years of hardwork, our products have
export to more than 30 countries in the world witch widely used in the files of animal feed, fertilizer, compost, mining,rice,
grain, plastic particals, nuts, flour, starches, sand, soil, gravel, port packing etc.
FAQ:
1. Can you offer oversea service?
Engineers available to service overseas.
2. How to use the machine?
Before send to you the packing machine, we will installation and testing welled then whole set packed in the wooden box, so you no need installation again,
when you received it, you can start working, also we will supply the installation catalogue or video online, if necessary we can dispatch enigneers to your site.
4. How about the guarantee period?
One year whole machine guarantee.
5. What's the payment term?
L/C or TT is accepted.
