Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BlueRay |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Packaging Details: | 1, Each packing machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month dry powder packing machine |
| Application: | Powder, Chemical, Commodity, Food, Machinery & Hardware, Textiles | Packaging Type: | Open Mouth Bags, Bags |
|---|---|---|---|
| Dimension(L*W*H): | 3000*1200*2500mm | Product Name: | Dry Powder Packing Machine |
| Three Load Cell: | High Weighing Accuracy | Double Screw Feeder: | Feeding Speed With Fast-midium-slow |
| Control Box: | Full Touch Screen Panel | Automatic Bag Clamp: | Sensor Control |
| PLC System: | Easy Operating | Packing Material: | Powder |
| Sewing Machine: | Full Automatic | Quality Warranty: | One Year |
| Condition: | New | Packaging Material: | Wood, Dry Powder Packing Machine In Wooden Case |
| Automatic Grade: | Semi-automatic | Driven Type: | Pneumatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Type: | Other |
| Voltage: | 220V/380V/50HZ | Power: | 3KW |
| Weight: | 1500KG | Port: | Shanghai Or Any Port In China |
| High Light: | 3KW Open Mouth Bagging Machine,DCS-50WF open mouth bagging equipment,1500KG open mouth bagger |
||

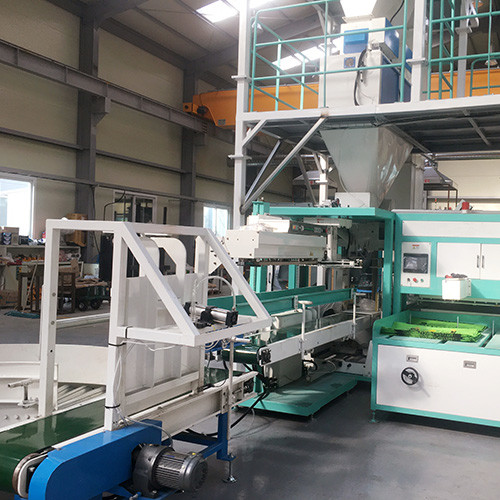

1, Product Name: 20kg to 50kg dry powder packing machine open mouth bagging machine
2, Item: DCS-50WF
|
Application materials
|
powder
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
5-50kg/bag or customized needs
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
120-180 bags/hour
|
||
|
Dimention(L*W*Hmm)
|
3000*1200*2600mm, the size can be customized according to your site
|
||
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
3KW
|
||
|
Working Temperature
|
-10~40 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
Screw feeding type packing machine suit for pack powder of any industry,such as flour, starches, lime powder, cement, fertilizer,silica sand powder, nitrate of potash, ammonium sulfate etc
This bagging machine is especially designed for pack materials(products) into open mouth bags,such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available
All machines will in container then
ship to the sea port of your country by the boat
|
Item
|
DCS-50WF
|
DCS-50F
|
DCS-50SF
|
|
Application materials
|
Power of any industry
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
5-50kg/bag or customized
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
120-180 bags/hour
|
240-360 bags/hour
|
500-600 bags/hour
|
|
Dimention(L*W*Hmm)
|
3000*1200*2600
|
3000*1200*3200
|
4000*1200*3700
|
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
3KW
|
3KW
|
6KW
|
|
Working Temperature
|
-10~40 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
