Jiangxi Blueray Mechanical & Electrical Equipment Co., Ltd
one-stop design & production & installation service of packaging equipment and feed equipment supplier
| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | BLU-RAY |
| Certification: | CE, ISO, CMC |
| Model Number: | DCS-50WF |
| Minimum Order Quantity: | 1 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Packaging Details: | 1, Each set of powder filling packaging machine will be packed in a big wooden case, then in the container 2, Customized needs available |
| Supply Ability: | 100 Set/Sets per Month |
| Type: | Filling Machine | Packaging Type: | Bags, Barrel, Other |
|---|---|---|---|
| Packaging Material: | Wood | Automatic Grade: | Automatic Or Semi-automatic As You Need |
| Driven Type: | Electric And Pneumatic | Voltage: | 220V/380V/50HZ, Single Phase+three Pahse |
| Power: | 3-6KW | Dimension(L*W*H): | 3000*1100*2500mm, This Size Can Be Customized As Your Site |
| Weight: | 1000kg | Product Name: | Powder Filling Packaging Machine |
| Three Load Cell: | High Weighing Accuracy | Three Travelling Cylinder: | Feeding Speed With Fast-midium-slow |
| Control Box: | Full Touch Screen Panel | Automatic Bag Clamp: | Sensor Control |
| PLC System: | Easy Operating | Packing Material: | Powder |
| Sewing Machine: | Full Automatic | OEM Service: | 15 Years R&D Experience |
| Quality Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shanghai Or Any Port Of China | ||
| Highlight: | 3kw Dry Powder Filling Equipment,CMC Dry Powder Filling Equipment,CMC 3kw Powder Filling Equipment |
||
Three load cell New Cheap changzhou manual powder filling machine
1. manual powder filling machine has the advantage of wide quantitative extent, high calculating precision, stable functioning, digital demonstration and easy operation.
2. The manual powder filling machine for sale as the function of controlling the parameter setup, the self-correcting of the fall height and fault self-diagnostics etc.
3. manual powder filling machine adopts the imported sensor and pneumatic implementation mechanism which makes the work reliable, the maintenance easy and no pollution.
4. manual powder filling machine 's cabinet adopt advanced plastic-sprayed craft and component contacted with raw material all adopt imported stainless steel that can be used for a long period, for its high sanitation standard and anticorrosion.
|
Product Name |
Screw feeding mechanism packing/packaging/bagging/filling machine |
||
|
Item |
DCS-50WF |
DCS-50F |
DCS-50SF |
|
Application Materials |
Powder materials such as flour, starches, lime powder, cement, fertilizer,silica sand powder,nitrate of potash, ammonium sulfate etc |
||
|
Display Resolution |
5g, 10g |
||
|
Weighing Range |
10-50kg/bag or customized needs |
||
|
Precision |
+/-(0.1-0.2)% FS |
||
|
Packing Capacity |
120-280bags/hour or more fast |
240-360 bags/hour or more fast |
500-600 bags/hour or more fast |
|
Dimension(L*W*Hmm) |
See detailed drawing, the size can be customized according to your site |
||
|
Power Supply |
AC220V/380V, 50HZ, 1P/3P |
||
|
Air Source |
0.5-0.7 Mpa |
||
|
Power |
3KW-6KW |
||
|
Working Temperature |
-10~40 ℃ |
||
|
Relative Humidity |
≤90% RH(Non-condensing) |
||
|
Description |
Remarks |
|
Packing scale framework |
Floor structure, high quality carbon steel |
|
Feeding mechanism |
Screw feeding type, three grade feeding speed with fast-medium-slow |
|
Weighing sensor |
Installation 3pcs(DCS-50WF,DCS-50F)/6pcs(DCS-50SF) load cell, famous brand |
|
Control system |
PLC system, full automatic, data record & print function |
|
Control box |
Color touch screen, English/Chinese interface |
|
Cylinder |
AirTAC brand, big force, high quality, more stable, long service life |
|
Solenoid valve |
AirTAC brand, with indicator |
|
Electric component |
Schneider brand, short circuit protection function |
|
Pneumatic component |
AirTAC brand, stable and reliable |
|
Motor |
Frequency conversion motor with smooth working |
|
Automatic sewing machine |
Photoelectric induction control, automatic thread knife cut, date record & print |
|
Belt type bag conveyor |
Speed governing design |

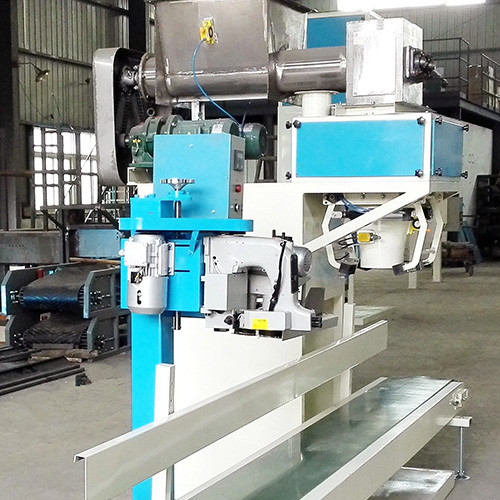

DCS-50WF 120-180bag/hour DUAL AUGER FEEDING packing/packaging/bagging/filling machine picture
DCS-50F 240-360bags/hour DUAL AUGER FEEDING packing/packaging/bagging/filling machine picture
DCS-50SF 500-600bag/hour DUAL AUGER FEEDING packing/packaging/bagging/filling machine picture
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-
testing-packaging and transport-after service
