SEMI AUTOMATIC WEIGHING/BAGGING/FILLING/PACKAGING MACHINE
Package Machine Description:
Our packaging machine is widely used in feed, fertilizer, grain, chemical industry, building materials, starch, food, rubber and plastics, hardware, minerals,covering more than 20 industries, more than 3,000 kinds of materials.
Package Machine Working Process:
Manual giving the empty bags-Automatic bag clamp-Automatic feeding-Automatic weighing-Automatic discharge-Automatic bag release-Bag conveying to the closed machine-Bag closed by sewing or heat sealing
Specification/technical parameter
| Item | DCS-50WL DCS-50L DCS-50SK |
DCS-50WF DCS-50F DCS-50SF |
DCS-50WD DCS-50D DCS-50SD |
| Application materials | packing different granule materials such as animal feed, fertilizer,urea,DAP,grains, rice, beans, wheat, dry sand, PE, PP plastic etc | powder materials such as premix, starches, chemical powder, flour, limestone powder etc | Mix, flake, block, irregular materials such as compost, organic manure,gravel, stone, wet sand etc |
| Weighing range | 10-50kg/bag or customized | 5-50kg/bag or customized | 5-50kg/bag or customized |
| Scale interval | 10g | ||
| Feeding type | gravity feeder with Three-stroke cylinder | Dual screw feeder with Inverter motor | Belt feeder with inverter motor |
| Weighing hopper | non weighing hopper single weighing hopper double weighing hopper for choose |
non weighing hopper single weighing hopper double weighing hopper for choose |
non weighing hopper single weighing hopper double weighing hopper for choose |
| Precision | ±50g | ||
| Capacity | 3-5bag/min, 6-8bags/min, 8-15bags/min for optional |
2-3bag/min, 4-6bags/min, 6-9bags/min for optional |
3-4bag/min, 5-7bags/min, 8-12bags/min for optional |
| System | PLC system and 10" full touch screen HMI | ||
| Air source | 0.5-0.8Mpa | ||
| Dimension(L*W*Hmm) | will send you the packing machine details drawing | ||
| Power | 2.4kw/2.5kw/3.7kw | 5.7kw/5.8kw/10.3kw | 2.8kw/2.9kw/4.5kw |
| Voltage | single/three phase AC220V/AC380V/50HZ | ||
| Working environment | (-10℃~40℃) | ||
| Relative humidity | ≤90%RH non condensation | ||
| Machine materials | product contact parts SS304/or full Q235 carbon steel with anti-rust painting | ||

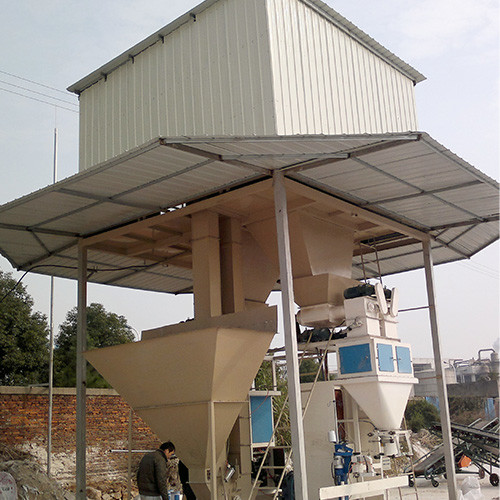

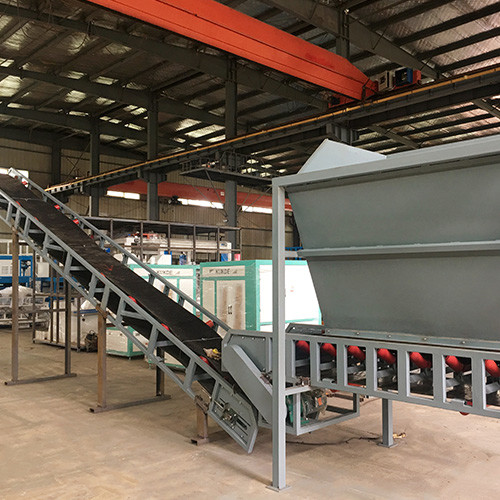

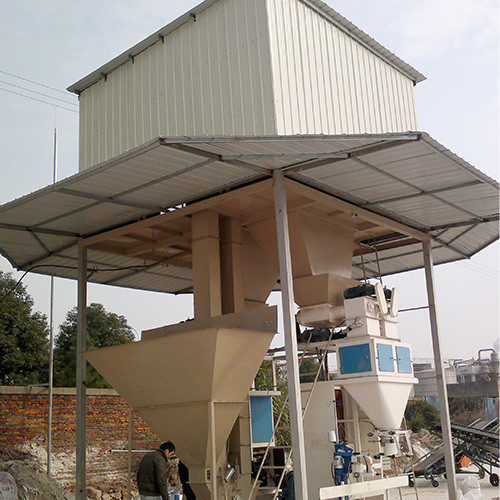

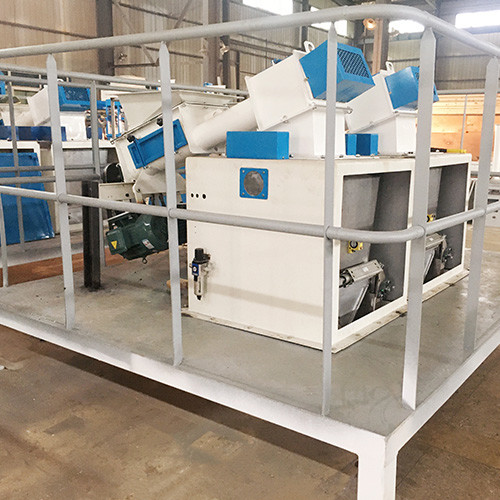

Detailed Images
After Sales Service
The machine before sent to you will installation and testeing welled in our factory. When the machine arrived you, we can provide
the following service to help you installation, debugging and opeation the machine:
1, Field installation, commissioning and worker training
2, Video technical support
3, Online support
4, Free spare parts
5, Field maintenance and repair service
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging serviceswill be provided.
1, inner package with stretch anti-rust and avoid the machine surface broken.
2, the full automatic packing machine before send to you will installation and testing welled then whole set package in 40HQ(container), the machine weight around 4000kg.
Company Profile
Jiangxi Blueray is a 20 years professional manufacturer of semi automatic packing machine, full automatic bagging stitching machine, automatic palletizer, sewing machine, heat sealing machine, conveyor etc. The factory located in Nanchang city Jiangxi province with convenient transportation access. All of our products have got the CE, B.V, CMC certificate and exported to more than 50 countries all over the world.
OEM and ODM orders are welcomed.
FAQ:
1. Can you offer oversea service?
Engineers available to service overseas. Also we will provide you manual, photos, video to help you operation the machine and 24 hour online service if you have any problem about the packaging machine.
2. How to use the machine?
Before send to you the packing machine, we will installation and testing welled then whole set packed in the wooden box, so you no need installation again, when you received it, you can start working, also we will supply the installation catalogue or video online, if necessary we can dispatch engineers to your site.
3. How about the guarantee period?
One year whole machine guarantee, and spare parts provide.
4. What is the lead time?
15-30days days after received the deposit, final as per your order.
